onsemi-GBPC1201 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	GBPC1201	GBPC1206	GBPC1202	GBPC1204	GBPC1501	GBPC1201W
Manufacturer	onsemi	Fairchild Semiconductor	Fairchild Semiconductor	onsemi	onsemi	onsemi
Product Status	Active	Active	Active	Active	Active	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	100 V	600 V	200 V	400 V	100 V	100 V
Current - Average Rectified (Io)	12 A	12 A	12 A	12 A	15 A	12 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 6 A	1.1 V @ 6 A	1.1 V @ 6 A	1.1 V @ 6 A	1.1 V @ 7.5 A	1.1 V @ 6 A
Current - Reverse Leakage @ Vr	5 µA @ 100 V	5 µA @ 600 V	5 µA @ 200 V	5 µA @ 400 V	5 µA @ 100 V	5 µA @ 100 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	QC Terminal	QC Terminal	QC Terminal	QC Terminal	QC Terminal	Through Hole
Package / Case	4-Square, GBPC	4-Square, GBPC	4-Square, GBPC	4-Square, GBPC	4-Square, GBPC	4-Square, GBPC-W
Supplier Device Package	GBPC	GBPC	GBPC	GBPC	GBPC	GBPC-W

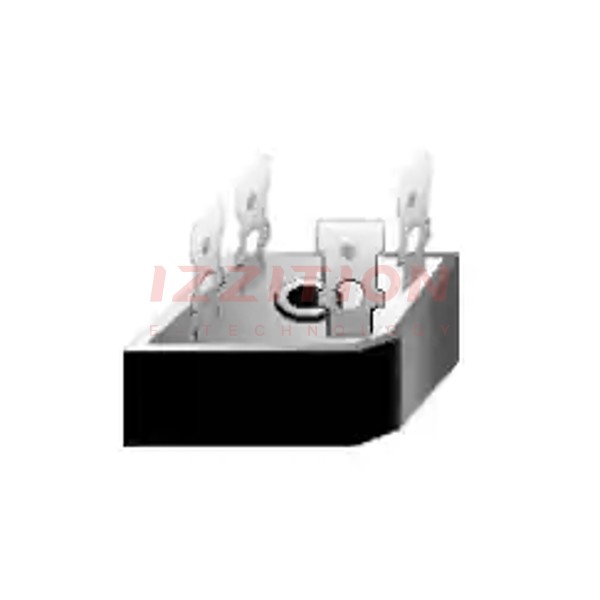

onsemi GBPC1201

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	100 V
Current - Average Rectified (Io):	12 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 6 A
Current - Reverse Leakage @ Vr:	5 µA @ 100 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	QC Terminal
Package / Case:	4-Square, GBPC
Supplier Device Package:	GBPC
