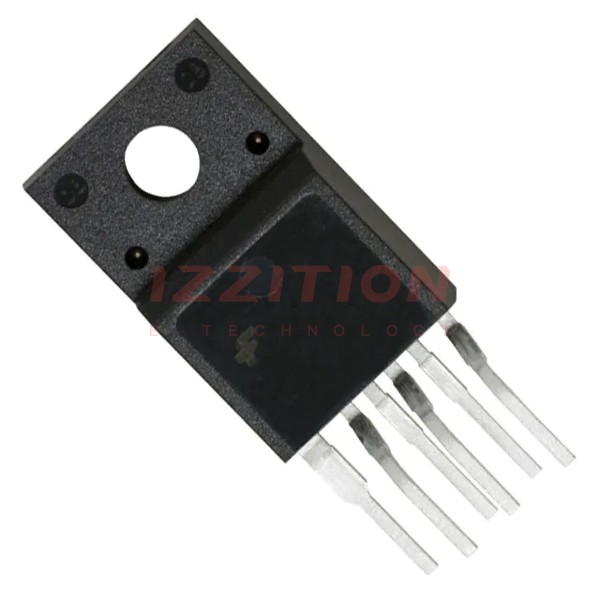

| Part Number | FSQ0565RQWDTU | FSQ0565RWDTU | FSQ0765RQWDTU | FSQ0565RSWDTU | FSQ0565RQLDTU |
|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Isolation | Isolated | Isolated | Isolated | Isolated | Isolated |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes |
| Voltage - Breakdown | 650V | 650V | 650V | 650V | 650V |
| Topology | Flyback | Flyback | Flyback | Flyback | Flyback |
| Voltage - Start Up | 12 V | 12 V | 12 V | 12 V | 12 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 20V | 8V ~ 20V | 8V ~ 20V | 8V ~ 20V | 8V ~ 20V |
| Duty Cycle | - | - | - | - | - |
| Frequency - Switching | 48kHz ~ 67kHz | 48kHz ~ 67kHz | 48kHz ~ 67kHz | 48kHz ~ 67kHz | 48kHz ~ 67kHz |
| Power (Watts) | 80 W | 80 W | 90 W | 80 W | 80 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Sync | - | Sync | Sync | Sync |
| Operating Temperature | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) |
| Package / Case | TO-220-6 Full Pack, Formed Leads | TO-220-6 Full Pack, Formed Leads | TO-220-6 Full Pack, Formed Leads | TO-220-6 Full Pack, Formed Leads | TO-220-6 Full Pack, Formed Leads |
| Supplier Device Package | TO-220F-6L (Forming) | TO-220F-6L (W-Forming) | TO-220F-6L (L-Forming) | TO-220F-6L (Forming) | TO-220F-6L (L-Forming) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
