Please send RFQ , we will respond immediately.

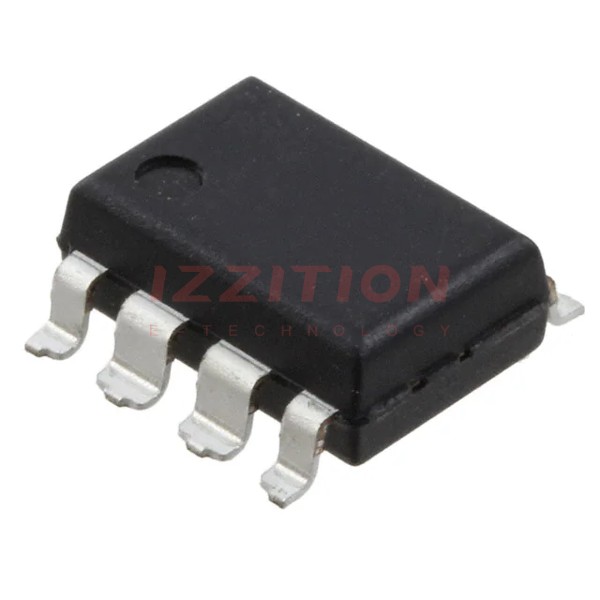

| Part Number | FSL206MRL | FSL206MRN | FSL206MRLX |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Active |
| Output Isolation | Isolated | Isolated | Isolated |
| Internal Switch(s) | Yes | Yes | Yes |
| Voltage - Breakdown | 650V | 650V | 650V |
| Topology | Flyback | Flyback | Flyback |
| Voltage - Start Up | 8 V | 8 V | 8 V |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 26V | 7V ~ 26V | 7V ~ 26V |
| Duty Cycle | 72% | 72% | 72% |
| Frequency - Switching | 67kHz | 67kHz | 67kHz |
| Power (Watts) | 12 W | 12 W | 12 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage | Current Limiting, Over Load, Over Temperature, Over Voltage | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - | - | - |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SMD, Gull Wing | 8-DIP (0.300", 7.62mm) | 8-SMD, Gull Wing |
| Supplier Device Package | 8-LSOP | 8-DIP | 8-LSOP |
| Mounting Type | Surface Mount | Through Hole | Surface Mount |
