| Part Number | FSGM0465RUDTU | FSGM0465RWDTU | FSGM0765RUDTU | FSGM0465RBUDTU | FSGM0465RLDTU |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Isolation | Isolated | Isolated | Isolated | Isolated | Isolated |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes |
| Voltage - Breakdown | 650V | 650V | 650V | 650V | 650V |
| Topology | Flyback | Flyback | Flyback | Flyback | Flyback |
| Voltage - Start Up | 12 V | 12 V | 12 V | 12 V | 12 V |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 26V | 7.5V ~ 26V | 7.5V ~ 26V | 7.5V ~ 26V | 7.5V ~ 26V |
| Duty Cycle | 70% | 70% | 70% | 70% | 70% |
| Frequency - Switching | 66kHz | 66kHz | 66kHz | 66kHz | 66kHz |
| Power (Watts) | 70 W | 70 W | 90 W | 70 W | 70 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |

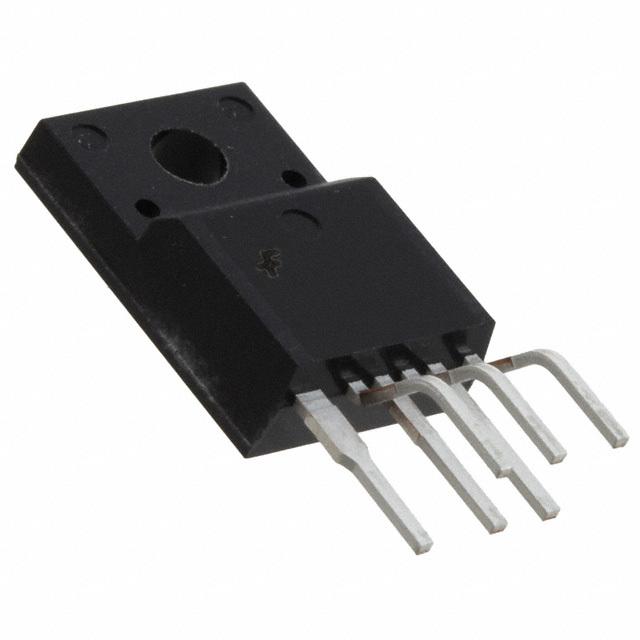

| Package / Case | TO-220-6 Full Pack, Formed Leads | TO-220-6 Full Pack, Formed Leads | TO-220-6 Full Pack, Formed Leads | TO-220-6 Full Pack, Formed Leads | TO-220-6 Full Pack, Formed Leads |
| Supplier Device Package | TO-220F-6L (U-Forming) | TO-220F-6L (Forming) | TO-220F-6L (U-Forming) | TO-220F-6L (U-Forming) | TO-220F-6L (L-Forming) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
