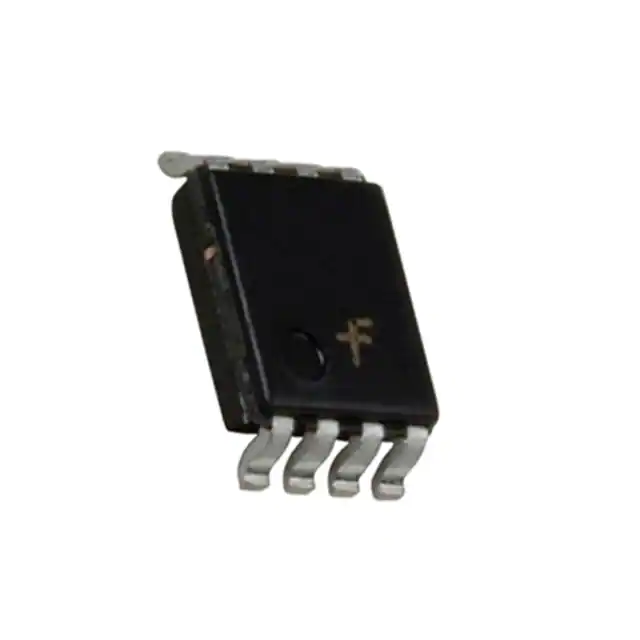

| Part Number | FSA3357K8X | FSA3357L8X |
|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor |
| Product Status | Active | Active |
| Switch Circuit | SP3T | SP3T |
| Multiplexer/Demultiplexer Circuit | 3:1 | 3:1 |
| Number of Circuits | 1 | 1 |
| On-State Resistance (Max) | 15Ohm | 15Ohm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm | 150mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 6.5ns, 3.7ns | 6.5ns, 3.7ns |
| -3db Bandwidth | 200MHz | 200MHz |
| Charge Injection | 3pC | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 3.6pF | 3.6pF |
| Current - Leakage (IS(off)) (Max) | 100nA | 100nA |
| Crosstalk | -60dB @ 10MHz | -60dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) | 8-UFQFN |
| Supplier Device Package | US8 | 8-MicroPak™ |
