| Part Number | FSA2467UMX | FSA2457UMX | FSA2466UMX |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Last Time Buy | Active |
| Switch Circuit | DPDT | 4PDT | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 | 2:1 | 2:2 |
| Number of Circuits | 2 | 4 | 2 |
| On-State Resistance (Max) | 400Ohm (Typ) | 7Ohm | 1.6Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 40mOhm (Min) | - | 40mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V | 2.7V ~ 3.6V | 1.65V ~ 4.45V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 32ns | 7ns, 4ns | 50ns, 32ns |
| -3db Bandwidth | 85MHz | 160MHz | 240MHz |
| Charge Injection | 15pC | - | 8pC |
| Channel Capacitance (CS(off), CD(off)) | 32pF | 6pF | 6pF |
| Current - Leakage (IS(off)) (Max) | 10nA | 1µA | 10nA |
| Crosstalk | -75dB @ 100kHz | -54dB @ 25MHz | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

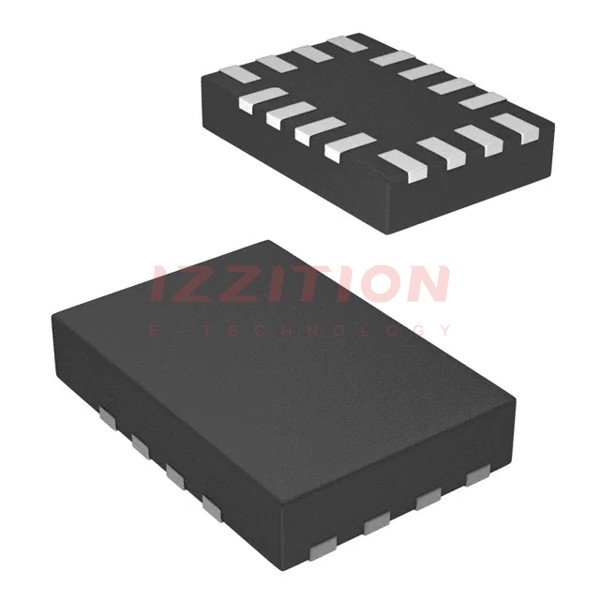

| Package / Case | 16-UFQFN | 16-UFQFN | 16-UFQFN |
| Supplier Device Package | 16-UMLP (1.8x2.6) | 16-UMLP (1.8x2.6) | 16-UMLP (1.8x2.6) |
