onsemi-FSA2467MPX - Interface - Analog Switches, Multiplexers, Demultiplexers Product Specifications and Latest Quotes

Switch Circuit:	DPDT
Multiplexer/Demultiplexer Circuit:	2:2
Number of Circuits:	2
On-State Resistance (Max):	400Ohm (Typ)
Channel-to-Channel Matching (ΔRon):	40mOhm (Min)
Voltage - Supply, Single (V+):	1.65V ~ 4.3V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	50ns, 32ns
-3db Bandwidth:	85MHz
Charge Injection:	15pC
Channel Capacitance (CS(off), CD(off)):	32pF
Current - Leakage (IS(off)) (Max):	10nA
Crosstalk:	-75dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount

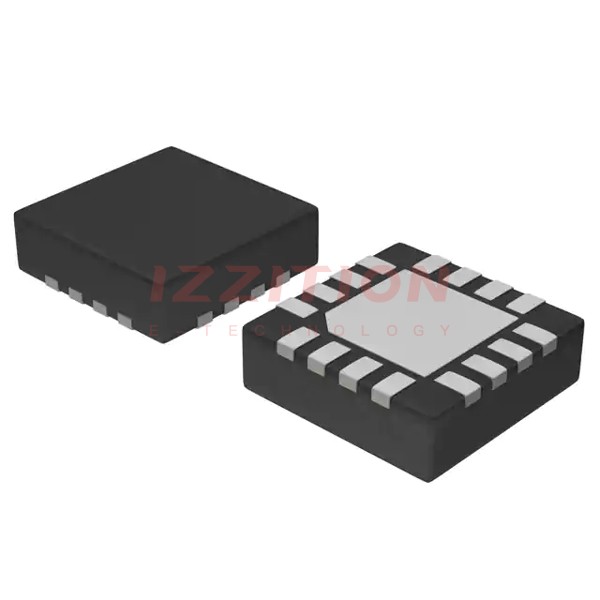

Package / Case:	16-WFQFN Exposed Pad
Supplier Device Package:	16-MLP (3x3)

onsemi FSA2467MPX
