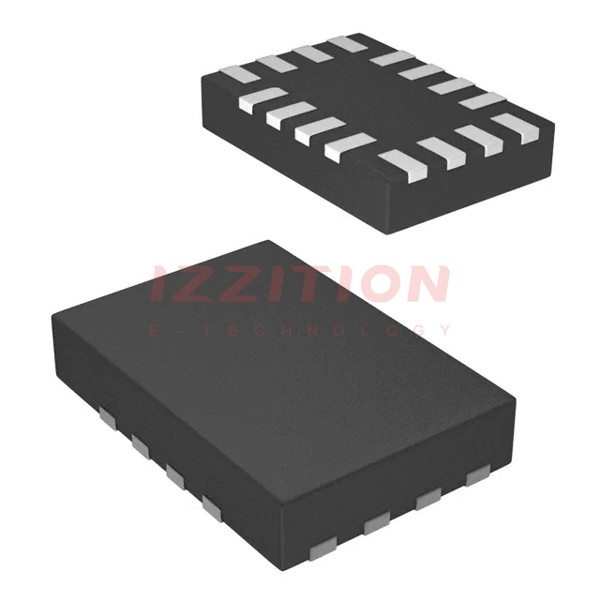

| Part Number | FSA2466UMX | FSA2467UMX |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Obsolete |
| Switch Circuit | DPDT | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 | 2:2 |
| Number of Circuits | 2 | 2 |
| On-State Resistance (Max) | 1.6Ohm (Typ) | 400Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 40mOhm | 40mOhm (Min) |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.45V | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 32ns | 50ns, 32ns |
| -3db Bandwidth | 240MHz | 85MHz |
| Charge Injection | 8pC | 15pC |
| Channel Capacitance (CS(off), CD(off)) | 6pF | 32pF |
| Current - Leakage (IS(off)) (Max) | 10nA | 10nA |
| Crosstalk | -90dB @ 100kHz | -75dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 16-UFQFN | 16-UFQFN |
| Supplier Device Package | 16-UMLP (1.8x2.6) | 16-UMLP (1.8x2.6) |
