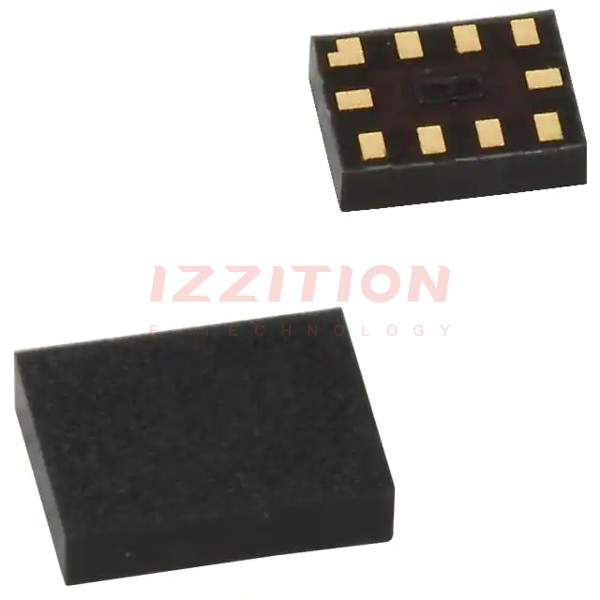

| Part Number | FSA2267L10X | FSA2269L10X | FSA2268L10X | FSA2267AL10X |
|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Last Time Buy | Active | Last Time Buy | Last Time Buy |
| Applications | Audio | Audio | Audio | Audio |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 | 2:1 |
| Switch Circuit | SPDT | SPDT | SPDT | SPDT |
| Number of Channels | 2 | 2 | 2 | 2 |
| On-State Resistance (Max) | 350mOhm (Typ) | 300mOhm (Typ) | 300mOhm (Typ) | 350mOhm (Typ) |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V | 1.65V ~ 4.5V | 1.65V ~ 4.3V | 2.3V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - | - | - | - |
| -3db Bandwidth | 45MHz | 50MHz | 50MHz | 45MHz |
| Features | - | Break-Before-Make | Break-Before-Make | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-UFQFN Exposed Pad | 10-UFQFN Exposed Pad | 10-UFQFN Exposed Pad | 10-UFQFN Exposed Pad |
| Supplier Device Package | 10-MicroPak™ | 10-MicroPak™ | 10-MicroPak™ | 10-MicroPak™ |
