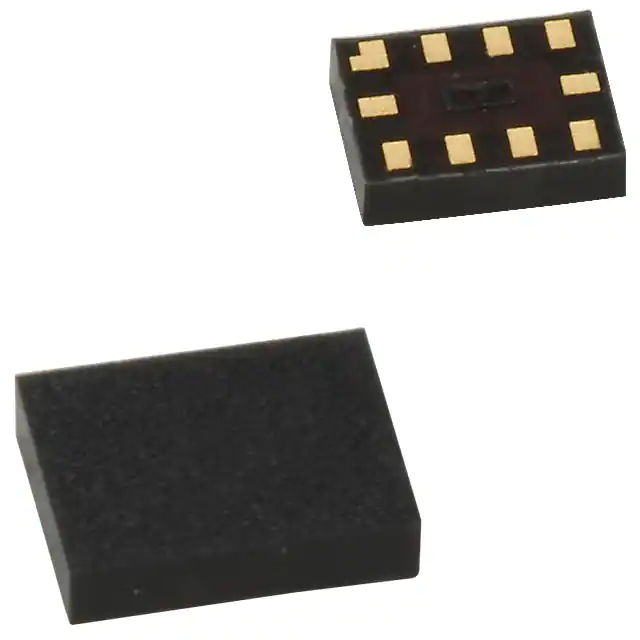

| Part Number | FSA2257L10X | FSA2258L10X |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Last Time Buy |
| Switch Circuit | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 |
| Number of Circuits | 2 | 2 |
| On-State Resistance (Max) | 1.15Ohm | 500mOhm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 60mOhm | 80mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 35ns, 15ns | 55ns, 30ns |
| -3db Bandwidth | 200MHz | 50MHz |
| Charge Injection | 10pC | 25pC |
| Channel Capacitance (CS(off), CD(off)) | 12pF | 3.3pF |
| Current - Leakage (IS(off)) (Max) | 2nA | 10nA |
| Crosstalk | -75dB @ 1MHz | -100dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 10-UFQFN Exposed Pad | 10-UFQFN Exposed Pad |
| Supplier Device Package | 10-MicroPak™ | 10-MicroPak™ |
