onsemi-FSA1256L8X_F113 - Interface - Analog Switches, Multiplexers, Demultiplexers Product Specifications and Latest Quotes

Switch Circuit:	SPST - NO
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	2
On-State Resistance (Max):	1.15Ohm
Channel-to-Channel Matching (ΔRon):	60mOhm
Voltage - Supply, Single (V+):	1.65V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	35ns, 15ns
-3db Bandwidth:	300MHz
Charge Injection:	20pC
Channel Capacitance (CS(off), CD(off)):	11.5pF
Current - Leakage (IS(off)) (Max):	2nA (Typ)
Crosstalk:	-100dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	8-UFQFN
Supplier Device Package:	8-MicroPak™

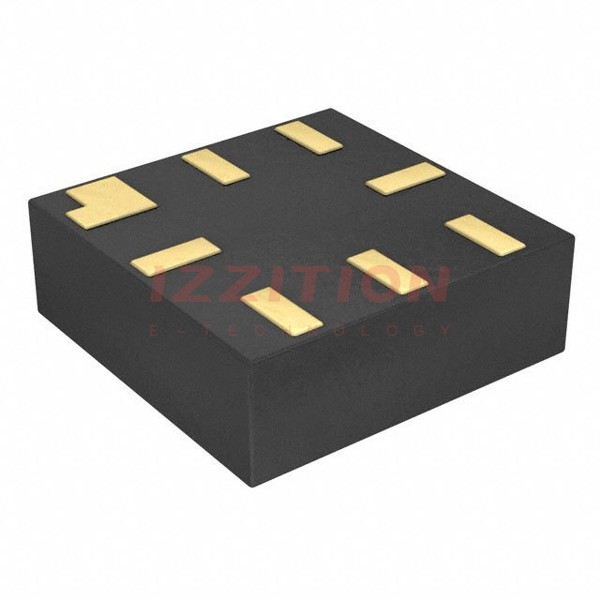

onsemi FSA1256L8X_F113
