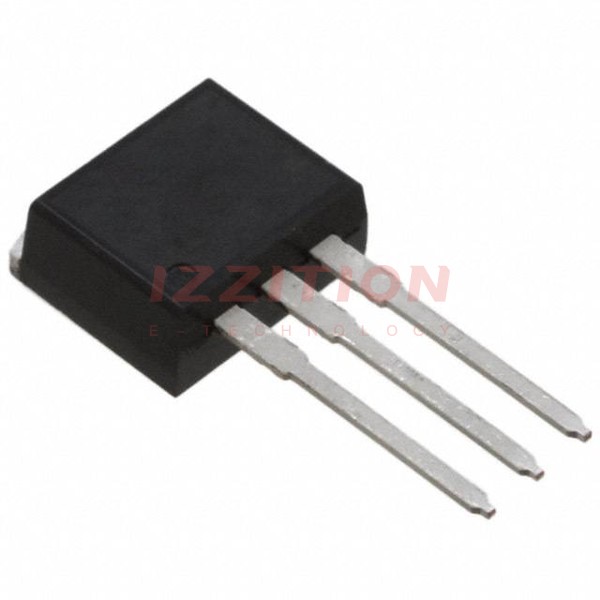

| Part Number | FQI9N08LTU | FQI9N08TU |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 9.3A (Tc) | 9.3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | 10V |
| Rds On (Max) @ Id, Vgs | 210mOhm @ 4.65A, 10V | 210mOhm @ 4.65A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.1 nC @ 5 V | 7.7 nC @ 10 V |
| Vgs (Max) | ±20V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 280 pF @ 25 V | 250 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.75W (Ta), 40W (Tc) | 3.75W (Ta), 40W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | I2PAK (TO-262) | I2PAK (TO-262) |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA |
