FQI3N90TU
  • Share:

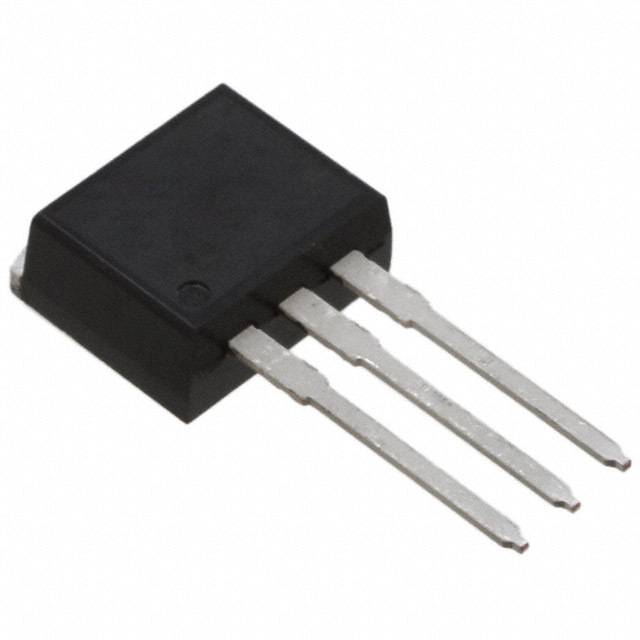

onsemi FQI3N90TU

Manufacturer No:
FQI3N90TU
Manufacturer:
onsemi
Package:
Tube
Datasheet:
FQI3N90TU Datasheet
ECAD Model:
-
Description:
MOSFET N-CH 900V 3.6A I2PAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):900 V
Current - Continuous Drain (Id) @ 25°C:3.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:4.25Ohm @ 1.8A, 10V
Vgs(th) (Max) @ Id:5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:26 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:910 pF @ 25 V
FET Feature:-
Power Dissipation (Max):3.13W (Ta), 130W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:I2PAK (TO-262)
Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA
0 Remaining View Similar

In Stock

-
56

Please send RFQ , we will respond immediately.

Similar Products

Part Number FQI3N90TU FQI4N90TU   FQI2N90TU   FQI3N30TU   FQI3N40TU   FQI3N80TU
Manufacturer onsemi Fairchild Semiconductor Fairchild Semiconductor Fairchild Semiconductor onsemi Fairchild Semiconductor
Product Status Obsolete Active Obsolete Obsolete Obsolete Obsolete
FET Type N-Channel N-Channel N-Channel N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 900 V 900 V 900 V 300 V 400 V 800 V
Current - Continuous Drain (Id) @ 25°C 3.6A (Tc) 4.2A (Tc) 2.2A (Tc) 3.2A (Tc) 2.5A (Tc) 3A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V 10V 10V 10V 10V
Rds On (Max) @ Id, Vgs 4.25Ohm @ 1.8A, 10V 3.3Ohm @ 2.1A, 10V 7.2Ohm @ 1.1A, 10V 2.2Ohm @ 1.6A, 10V 3.4Ohm @ 1.25A, 10V 5Ohm @ 1.5A, 10V
Vgs(th) (Max) @ Id 5V @ 250µA 5V @ 250µA 5V @ 250µA 5V @ 250µA 5V @ 250µA 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 26 nC @ 10 V 30 nC @ 10 V 15 nC @ 10 V 7 nC @ 10 V 7.5 nC @ 10 V 19 nC @ 10 V
Vgs (Max) ±30V ±30V ±30V ±30V ±30V ±30V
Input Capacitance (Ciss) (Max) @ Vds 910 pF @ 25 V 1100 pF @ 25 V 500 pF @ 25 V 230 pF @ 25 V 230 pF @ 25 V 690 pF @ 25 V
FET Feature - - - - - -
Power Dissipation (Max) 3.13W (Ta), 130W (Tc) 3.13W (Ta), 140W (Tc) 3.13W (Ta), 85W (Tc) 3.13W (Ta), 55W (Tc) 3.13W (Ta), 55W (Tc) 3.13W (Ta), 107W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Supplier Device Package I2PAK (TO-262) I2PAK (TO-262) I2PAK (TO-262) I2PAK (TO-262) I2PAK (TO-262) I2PAK (TO-262)
Package / Case TO-262-3 Long Leads, I²Pak, TO-262AA TO-262-3 Long Leads, I²Pak, TO-262AA TO-262-3 Long Leads, I²Pak, TO-262AA TO-262-3 Long Leads, I²Pak, TO-262AA TO-262-3 Long Leads, I²Pak, TO-262AA TO-262-3 Long Leads, I²Pak, TO-262AA
