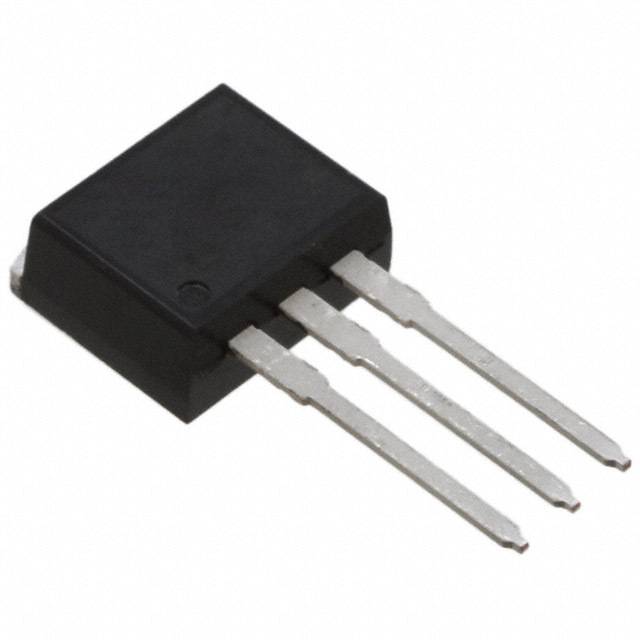

| Part Number | FQI19N20CTU | FQI19N20TU | FQI10N20CTU |
|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V | 200 V | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 19A (Tc) | 19.4A (Tc) | 9.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 170mOhm @ 9.5A, 10V | 150mOhm @ 9.7A, 10V | 360mOhm @ 4.75A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 5V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 53 nC @ 10 V | 40 nC @ 10 V | 26 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1080 pF @ 25 V | 1600 pF @ 25 V | 510 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 3.13W (Ta), 139W (Tc) | 3.13W (Ta), 140W (Tc) | 72W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | I2PAK (TO-262) | I2PAK (TO-262) | I2PAK (TO-262) |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA |
