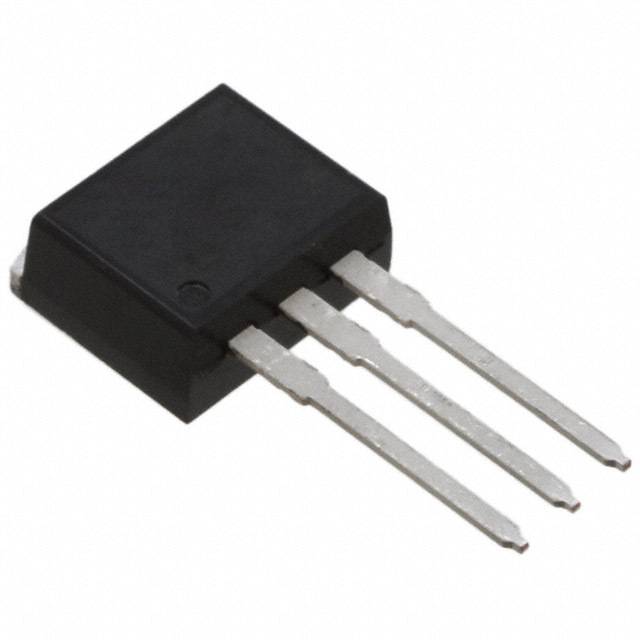

| Part Number | FQI12N50TU | FQI12N60TU |
|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 12.1A (Tc) | 10.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 490mOhm @ 6.05A, 10V | 700mOhm @ 5.3A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 51 nC @ 10 V | 54 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2020 pF @ 25 V | 1900 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.13W (Ta), 179W (Tc) | 3.13W (Ta), 180W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | I2PAK (TO-262) | I2PAK (TO-262) |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA |
