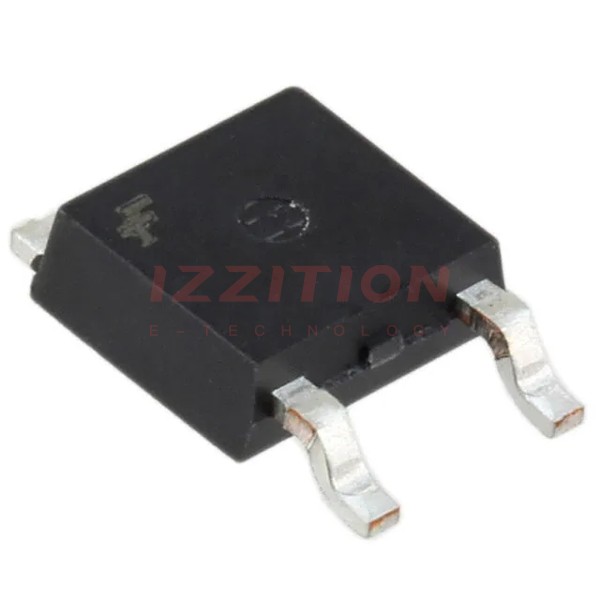

| Part Number | FQD10N20LTM | FQD12N20LTM | FQD10N20TM | FQD10N20CTM | FQD10N20LTF |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Last Time Buy | Active | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V | 200 V | 200 V | 200 V | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 7.6A (Tc) | 9A (Tc) | 7.6A (Tc) | 7.8A (Tc) | 7.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | 5V, 10V | 10V | 10V | 5V, 10V |
| Rds On (Max) @ Id, Vgs | 360mOhm @ 3.8A, 10V | 280mOhm @ 4.5A, 10V | 360mOhm @ 3.8A, 10V | 360mOhm @ 3.9A, 10V | 360mOhm @ 3.8A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA | 2V @ 250µA | 5V @ 250µA | 4V @ 250µA | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 5 V | 21 nC @ 5 V | 18 nC @ 10 V | 26 nC @ 10 V | 17 nC @ 5 V |
| Vgs (Max) | ±20V | ±20V | ±30V | ±30V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 830 pF @ 25 V | 1080 pF @ 25 V | 670 pF @ 25 V | 510 pF @ 25 V | 830 pF @ 25 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 2.5W (Ta), 51W (Tc) | 2.5W (Ta), 55W (Tc) | 2.5W (Ta), 51W (Tc) | 50W (Tc) | 2.5W (Ta), 51W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | D-Pak | TO-252AA | TO-252AA | TO-252AA | D-Pak |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
