Please send RFQ , we will respond immediately.
| Part Number | FQA24N50_F109 | FQA28N50_F109 | FQA24N50F_F109 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V | 500 V | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 24A (Tc) | 28.4A (Tc) | 24A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 200mOhm @ 12A, 10V | 160mOhm @ 14.2A, 10V | 200mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 120 nC @ 10 V | 140 nC @ 10 V | 120 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 4500 pF @ 25 V | 5600 pF @ 25 V | 4500 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 290W (Tc) | 310W (Tc) | 290W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

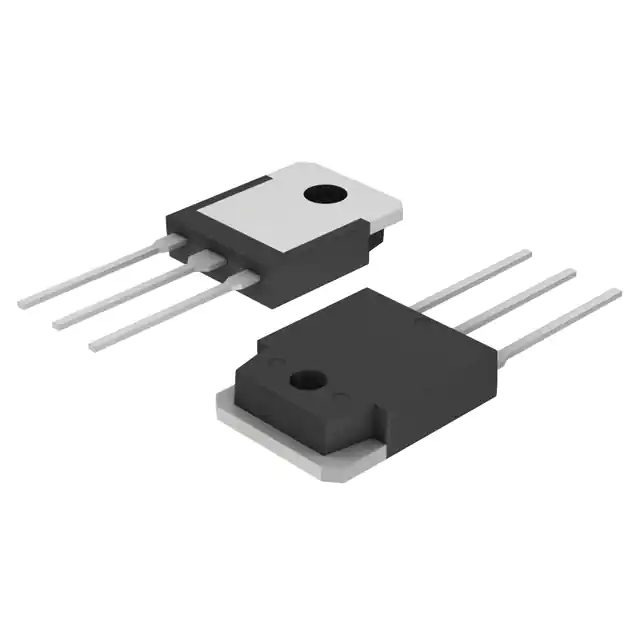

| Supplier Device Package | TO-3P | TO-3P | TO-3P |
| Package / Case | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 |
