| Part Number | FPN630 | FPN630A | FPN660 | FPN530 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | PNP | PNP | PNP | NPN |
| Current - Collector (Ic) (Max) | 3 A | 3 A | 3 A | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 30 V | 30 V | 60 V | 30 V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 100mA, 1A | 250mV @ 100mA, 1A | 450mV @ 200mA, 2A | 300mV @ 100mA, 1A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 100mA, 2V | 250 @ 100mA, 2V | 100 @ 500mA, 2V | 100 @ 100mA, 2V |
| Power - Max | 1 W | 1 W | 1 W | 1 W |
| Frequency - Transition | 100MHz | 100MHz | 75MHz | 150MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

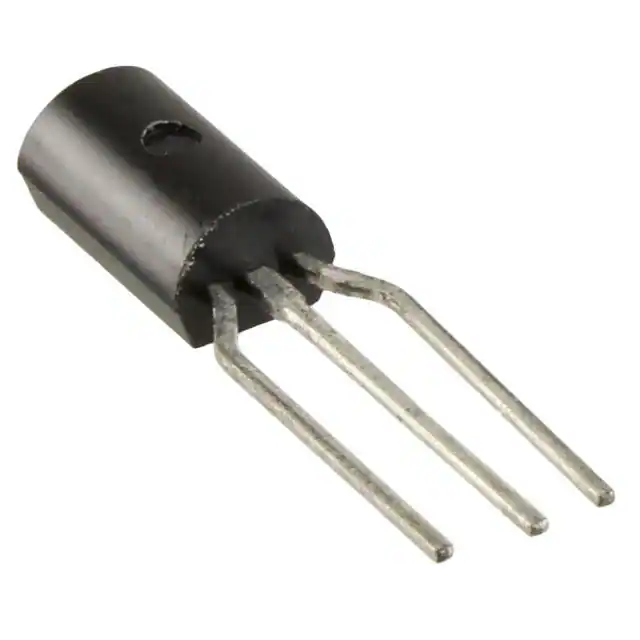

| Package / Case | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body |
| Supplier Device Package | TO-226 | TO-226 | TO-226 | TO-226 |
