| Part Number | FPF2895VUCX | FPF2895CUCX | FPF2895UCX |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Switch Type | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off |
| Voltage - Load | 4V ~ 22V | 4V ~ 22V | 4V ~ 22V |
| Voltage - Supply (Vcc/Vdd) | - | Not Required | - |
| Current - Output (Max) | 5A | 5A | 5A |
| Rds On (Typ) | 27mOhm | 27mOhm | 27mOhm |
| Input Type | - | - | - |
| Features | Auto Restart, Status Flag | Auto Restart, Status Flag | Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

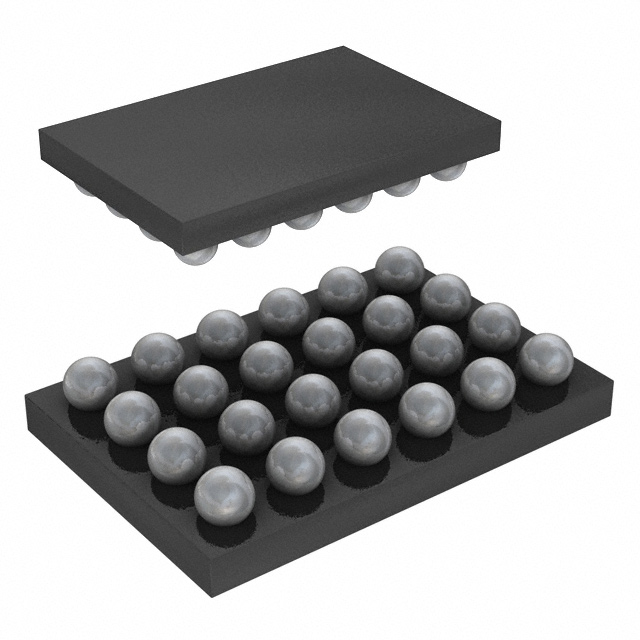

| Supplier Device Package | 24-WLCSP (2.6x1.67) | 24-WLCSP (2.6x1.67) | 24-WLCSP (2.6x1.67) |
| Package / Case | 24-UFBGA, WLCSP | 24-UFBGA, WLCSP | 24-UFBGA, WLCSP |
