Please send RFQ , we will respond immediately.
| Part Number | FPF2213 | FPF2215 | FPF2223 | FPF2214 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Last Time Buy | Active | Last Time Buy | Obsolete |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side |
| Output Type | P-Channel | P-Channel | P-Channel | P-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required | Not Required |
| Current - Output (Max) | 250mA | 250mA | 625mA | 250mA |
| Rds On (Typ) | 250mOhm | 250mOhm | 140mOhm | 250mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Auto Restart, Load Discharge, Status Flag | Load Discharge, Status Flag | Auto Restart, Load Discharge, Status Flag | Load Discharge, Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO | Current Limiting (Adjustable), Over Temperature, UVLO | Current Limiting (Adjustable), Over Temperature, UVLO | Current Limiting (Adjustable), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

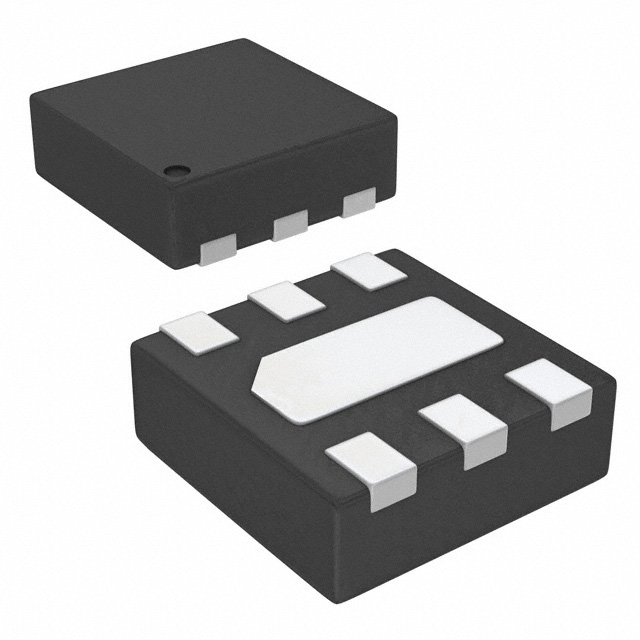

| Supplier Device Package | 6-MicroFET (2x2) | 6-MicroFET (2x2) | 6-MicroFET (2x2) | 6-MicroFET (2x2) |
| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-VDFN Exposed Pad |
