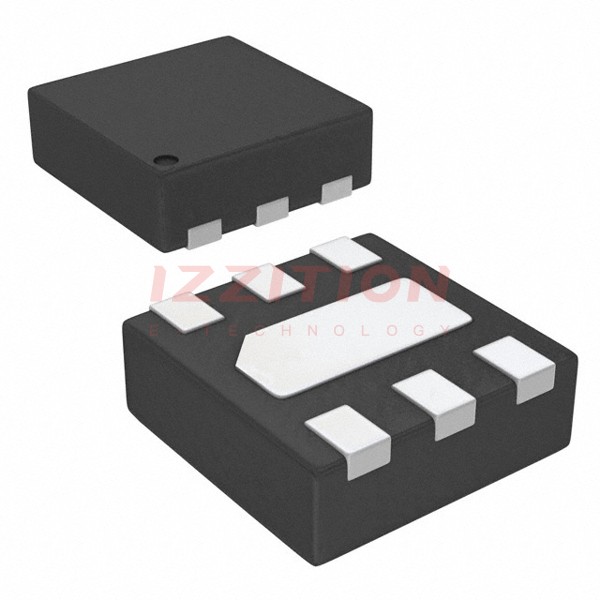

| Part Number | FPF2165 | FPF2195 | FPF2165R | FPF2105 | FPF2125 | FPF2163 | FPF2164 |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | Fairchild Semiconductor | onsemi | onsemi | onsemi |
| Product Status | Last Time Buy | Last Time Buy | Active | Active | Last Time Buy | Last Time Buy | Last Time Buy |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side | High Side | High Side | High Side |
| Output Type | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 6V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required | 1.8V ~ 5.5V | Not Required | Not Required | Not Required |
| Current - Output (Max) | 1.5A | 1.5A | 1.5A | 400mA | 1.5A | 1.5A | 1.5A |
| Rds On (Typ) | 120mOhm | 55mOhm | 95mOhm | 125mOhm | 125mOhm | 120mOhm | 120mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Status Flag | Status Flag | Status Flag | Auto Restart, Status Flag | - | Auto Restart, Status Flag | Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | Current Limiting (Fixed), Over Temperature, UVLO | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-MicroFET (2x2) | 6-WLCSP (0.96x1.66) | 6-MicroFET (2x2) | SOT-23-5 | SOT-23-5 | 6-MicroFET (2x2) | 6-MicroFET (2x2) |
| Package / Case | 6-WDFN Exposed Pad | 6-UFBGA, WLCSP | 6-WDFN Exposed Pad | SC-74A, SOT-753 | SC-74A, SOT-753 | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
