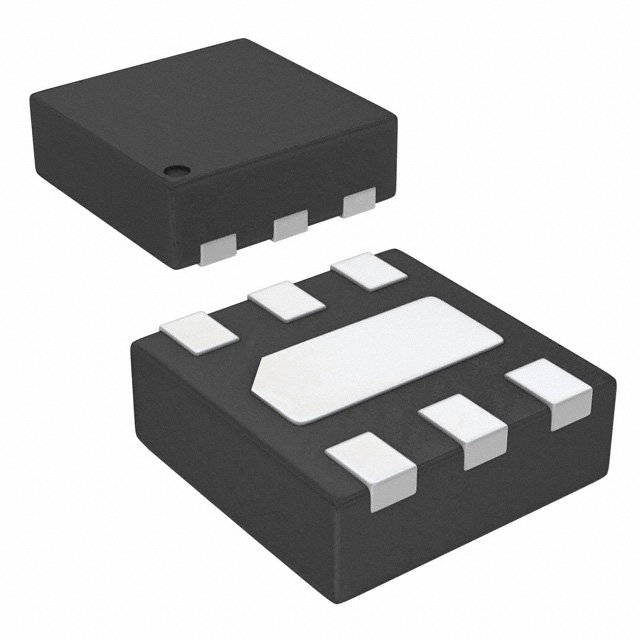

| Part Number | FPF1007 | FPF1017 | FPF2007 | FPF1107 | FPF1008 | FPF1009 | FPF1003 | FPF1004 | FPF1005 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | onsemi |
| Product Status | Last Time Buy | Active | Active | Last Time Buy | Last Time Buy | Active | Obsolete | Active | Last Time Buy |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side | High Side | High Side | High Side | High Side | High Side |
| Output Type | P-Channel | N-Channel | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off | On/Off | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 1.2V ~ 5.5V | 0.8V ~ 1.8V | 1.8V ~ 5.5V | 1.2V ~ 4V | 1.2V ~ 5.5V | 1.2V ~ 5.5V | 1.2V ~ 5.5V | 1.2V ~ 5.5V | 1.2V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required |
| Current - Output (Max) | 1.5A | 1.5A | 100mA | 1.2A | 1.5A | 1.5A | 2A | 2A | 1.5A |
| Rds On (Typ) | 30mOhm | 34mOhm | 700mOhm | 35mOhm | 30mOhm | 30mOhm | 20mOhm | 20mOhm | 50mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Load Discharge, Slew Rate Controlled | Load Discharge, Slew Rate Controlled | Status Flag | Slew Rate Controlled | Load Discharge, Slew Rate Controlled | Load Discharge, Slew Rate Controlled | Slew Rate Controlled | Load Discharge, Slew Rate Controlled | Load Discharge, Slew Rate Controlled |
| Fault Protection | - | - | Current Limiting (Fixed), Over Temperature, UVLO | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-MicroFET (2x2) | 6-MicroFET (2x2) | SC-70-5 | 4-WLCSP (0.96x0.96) | 6-MicroFET (2x2) | 6-MicroFET (2x2) | 6-WLCSP (0.96x1.66) | 6-WLCSP (1x1.5) | 6-MicroFET (2x2) |
| Package / Case | 6-WDFN Exposed Pad | 6-VDFN Exposed Pad | 5-TSSOP, SC-70-5, SOT-353 | 4-UFBGA, WLCSP | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-UFBGA, WLCSP | 6-UFBGA, WLCSP | 6-WDFN Exposed Pad |
