FOD4218SD
  • Share:

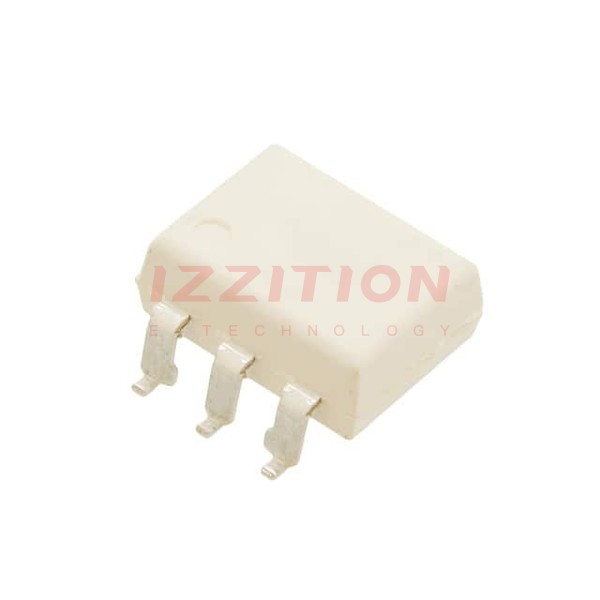

onsemi FOD4218SD

Manufacturer No:
FOD4218SD
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Datasheet:
FOD4218SD Datasheet
ECAD Model:
-
Description:
OPTOISOLATOR 5KV TRIAC 6SMDIP-B
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Type:Triac
Zero Crossing Circuit:No
Number of Channels:1
Voltage - Isolation:5000Vrms
Voltage - Off State:800 V
Static dV/dt (Min):10kV/µs
Current - LED Trigger (Ift) (Max):1.3mA
Current - On State (It (RMS)) (Max):-
Current - Hold (Ih):500µA
Turn On Time:60µs
Voltage - Forward (Vf) (Typ):1.28V
Current - DC Forward (If) (Max):30 mA
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:6-SMD, Gull Wing
Supplier Device Package:6-SMD
Approval Agency:cUL, FIMKO, UL
0 Remaining View Similar

In Stock

$2.80
136

Please send RFQ , we will respond immediately.
