onsemi-FOD3184 - Isolators - Gate Drivers Product Specifications and Latest Quotes

Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	35kV/µs
Propagation Delay tpLH / tpHL (Max):	210ns, 210ns
Pulse Width Distortion (Max):	65ns
Rise / Fall Time (Typ):	38ns, 24ns
Current - Output High, Low:	2.5A, 2.5A
Current - Peak Output:	3A
Voltage - Forward (Vf) (Typ):	1.43V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	15V ~ 30V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-DIP
Approval Agency:	UL

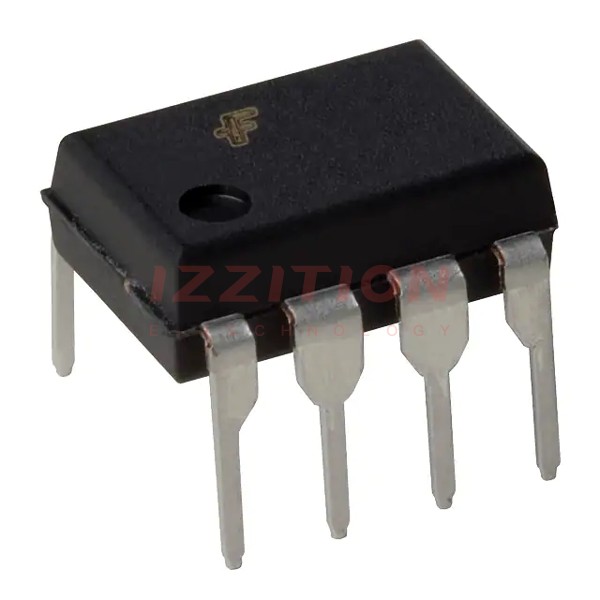

onsemi FOD3184
