onsemi-FOD3180TV - Isolators - Gate Drivers Product Specifications and Latest Quotes

Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	15kV/µs
Propagation Delay tpLH / tpHL (Max):	200ns, 200ns
Pulse Width Distortion (Max):	65ns
Rise / Fall Time (Typ):	75ns, 55ns
Current - Output High, Low:	2A, 2A
Current - Peak Output:	2.5A
Voltage - Forward (Vf) (Typ):	1.43V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	10V ~ 20V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.400", 10.16mm)
Supplier Device Package:	8-MDIP
Approval Agency:	cUL, UL, VDE

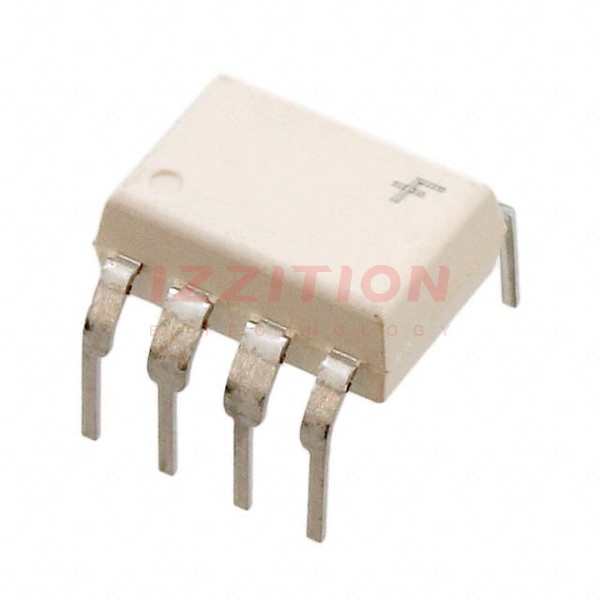

onsemi FOD3180TV
