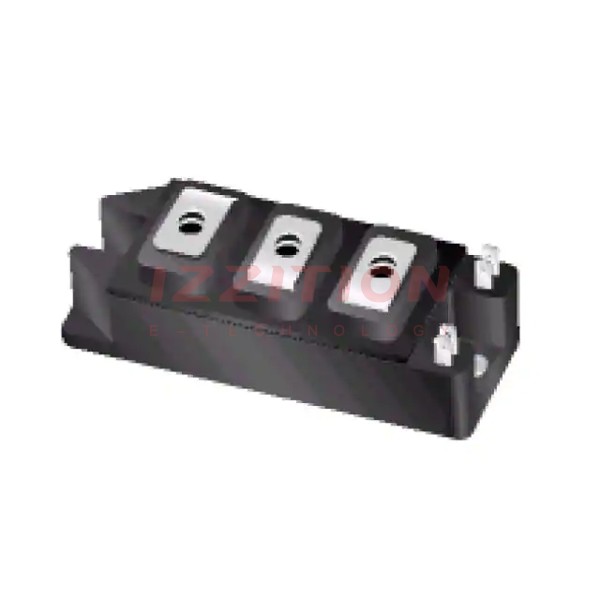

| Part Number | FMG2G100US60 | FMG2G400US60 | FMG2G200US60 | FMG2G300US60 | FMG2G150US60 |
|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| IGBT Type | - | - | - | - | - |
| Configuration | Half Bridge | Half Bridge | Half Bridge | Half Bridge | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 100 A | 400 A | 200 A | 300 A | 150 A |
| Power - Max | 400 W | 1136 W | 695 W | 892 W | 595 W |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 100A | 2.7V @ 15V, 400A | 2.7V @ 15V, 200A | 2.7V @ 15V, 300A | 2.7V @ 15V, 150A |
| Current - Collector Cutoff (Max) | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA |
| Input Capacitance (Cies) @ Vce | 10.84 nF @ 30 V | - | - | - | - |
| Input | Standard | Standard | Standard | Standard | Standard |
| NTC Thermistor | No | No | No | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | 7PM-GA | 7PM-IA | 7PM-HA | 7PM-IA | 7PM-HA |
| Supplier Device Package | 7PM-GA | 7PM-IA | 7PM-HA | 7PM-IA | 7PM-HA |
