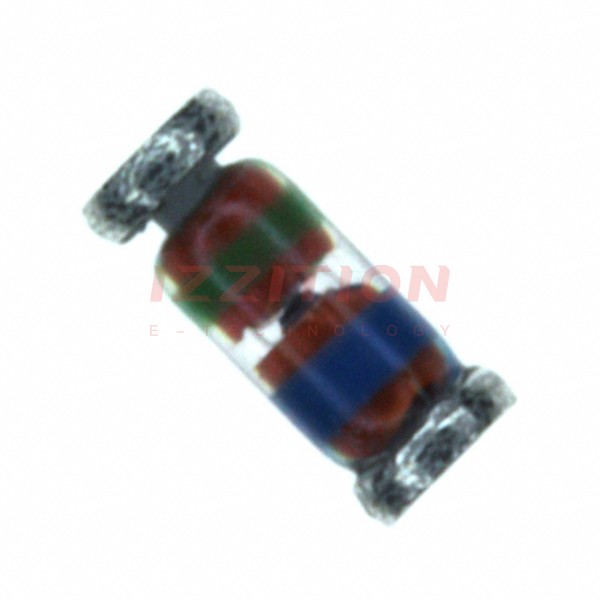

| Part Number | FLZ6V8B | FLZ6V8C | FLZ6V2B | FLZ6V8A |
|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 6.7 V | 6.8 V | 6.1 V | 6.5 V |
| Tolerance | ±3% | ±3% | ±3% | ±3% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 6.6 Ohms | 6.6 Ohms | 8.5 Ohms | 6.6 Ohms |
| Current - Reverse Leakage @ Vr | 1.1 µA @ 3.5 V | 1.1 µA @ 3.5 V | 3.3 µA @ 3 V | 1.1 µA @ 3.5 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | SOD-80 | SOD-80 | SOD-80 | SOD-80 |
