onsemi-FLZ30VD - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	FLZ30VD	FLZ33VD	FLZ39VD	FLZ36VD	FLZ20VD	FLZ30VA	FLZ30VB	FLZ30VC
Manufacturer	onsemi	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	onsemi	Fairchild Semiconductor	onsemi	Fairchild Semiconductor
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Voltage - Zener (Nom) (Vz)	29.8 V	32.3 V	37.6 V	34.9 V	20.3 V	27.7 V	28.4 V	29.1 V
Tolerance	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	46 Ohms	55 Ohms	72 Ohms	63 Ohms	23.5 Ohms	46 Ohms	46 Ohms	46 Ohms
Current - Reverse Leakage @ Vr	133 nA @ 23 V	133 nA @ 25 V	133 nA @ 30 V	133 nA @ 27 V	133 nA @ 15 V	133 nA @ 23 V	133 nA @ 23 V	133 nA @ 23 V
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA
Operating Temperature	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80
Supplier Device Package	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80

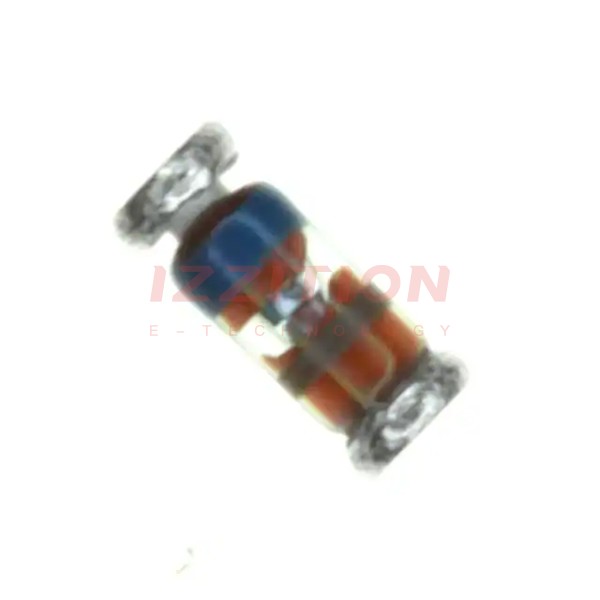

onsemi FLZ30VD
