onsemi-FLZ24VD - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	FLZ24VD	FLZ27VD	FLZ20VD	FLZ22VD	FLZ24VA	FLZ24VB	FLZ24VC
Manufacturer	onsemi	Fairchild Semiconductor	onsemi	onsemi	onsemi	Fairchild Semiconductor	Fairchild Semiconductor
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Voltage - Zener (Nom) (Vz)	24.3 V	27 V	20.3 V	22.2 V	22.7 V	23.2 V	23.8 V
Tolerance	±3%	±3%	±3%	±3%	±3%	±3%	±3%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	29 Ohms	38 Ohms	23.5 Ohms	25.6 Ohms	29 Ohms	29 Ohms	29 Ohms
Current - Reverse Leakage @ Vr	133 nA @ 19 V	133 nA @ 21 V	133 nA @ 15 V	133 nA @ 17 V	133 nA @ 19 V	133 nA @ 19 V	133 nA @ 19 V
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA
Operating Temperature	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80
Supplier Device Package	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80

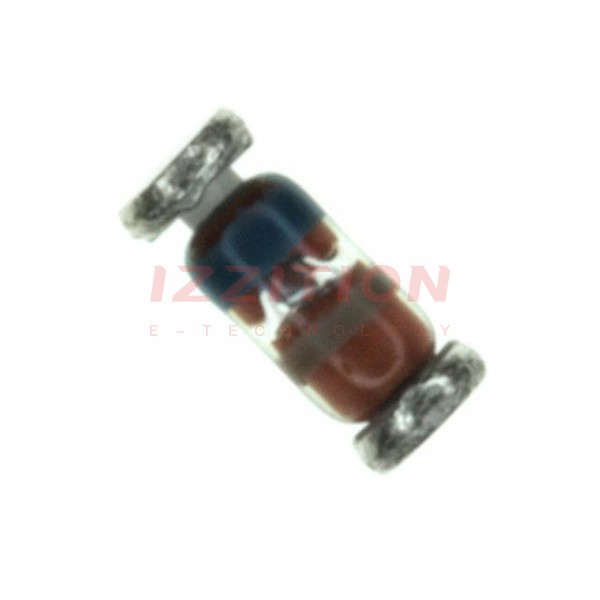

onsemi FLZ24VD
