onsemi-FLZ24VA - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	FLZ24VA	FLZ24VC	FLZ24VB	FLZ27VA	FLZ24VD	FLZ20VA	FLZ22VA
Manufacturer	onsemi	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	onsemi	Fairchild Semiconductor	Fairchild Semiconductor
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Voltage - Zener (Nom) (Vz)	22.7 V	23.8 V	23.2 V	24.9 V	24.3 V	18.5 V	20.6 V
Tolerance	±3%	±3%	±3%	±3%	±3%	±3%	±3%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	29 Ohms	29 Ohms	29 Ohms	38 Ohms	29 Ohms	23.5 Ohms	25.6 Ohms
Current - Reverse Leakage @ Vr	133 nA @ 19 V	133 nA @ 19 V	133 nA @ 19 V	133 nA @ 21 V	133 nA @ 19 V	133 nA @ 15 V	133 nA @ 17 V
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA
Operating Temperature	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80
Supplier Device Package	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80

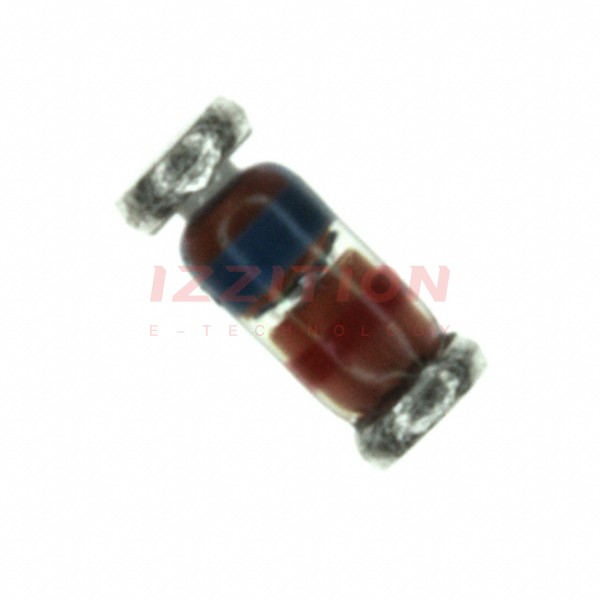

onsemi FLZ24VA
