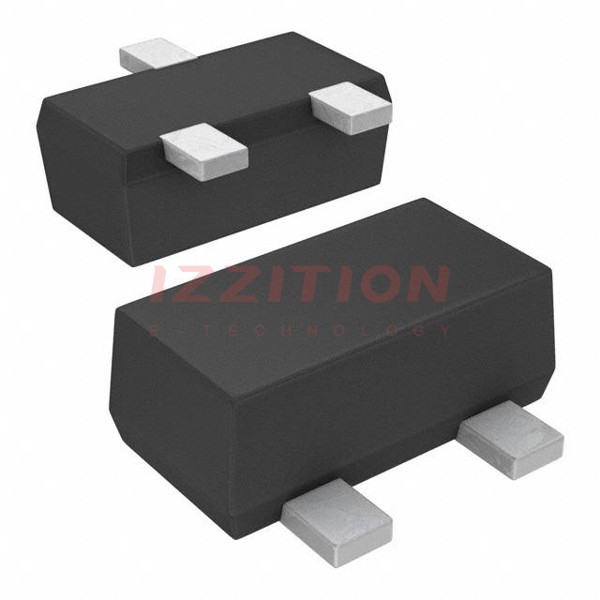

| Part Number | FJY4005R | FJY4007R | FJY4008R | FJY4009R | FJY3005R | FJY4001R | FJY4003R | FJY4004R |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | NPN - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V | 40 V | 50 V | 50 V | 50 V | 50 V |
| Resistor - Base (R1) | 4.7 kOhms | 22 kOhms | 47 kOhms | 4.7 kOhms | 4.7 kOhms | 4.7 kOhms | 22 kOhms | 47 kOhms |
| Resistor - Emitter Base (R2) | 10 kOhms | 47 kOhms | 22 kOhms | - | 10 kOhms | 4.7 kOhms | 22 kOhms | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 5V | 68 @ 5mA, 5V | 68 @ 5mA, 5V | 100 @ 1mA, 5V | 30 @ 5mA, 5V | 20 @ 10mA, 5V | 56 @ 5mA, 5V | 68 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA | 300mV @ 500µA, 10mA | 300mV @ 500µA, 10mA | 300mV @ 1mA, 10mA | 300mV @ 500µA, 10mA | 300mV @ 500µA, 10mA | 300mV @ 500µA, 10mA | 300mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| Frequency - Transition | 200 MHz | 200 MHz | 200 MHz | 200 MHz | 250 MHz | 200 MHz | 250 MHz | 200 MHz |
| Power - Max | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-89, SOT-490 | SC-89, SOT-490 | SC-89, SOT-490 | SC-89, SOT-490 | SC-89, SOT-490 | SC-89, SOT-490 | SC-89, SOT-490 | SC-89, SOT-490 |
| Supplier Device Package | SC-89-3 | SOT-523F | SOT-523F | SOT-523F | SOT-523F | SOT-523F | SOT-523F | SOT-523F |
