onsemi-FJY3004R-ON - Transistors - Bipolar (BJT) - Single, Pre-Biased Product Specifications and Latest Quotes

Transistor Type:	NPN - Pre-Biased
Current - Collector (Ic) (Max):	100 mA
Voltage - Collector Emitter Breakdown (Max):	50 V
Resistor - Base (R1):	47 kOhms
Resistor - Emitter Base (R2):	47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:	56 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic:	300mV @ 500µA, 10mA
Current - Collector Cutoff (Max):	100nA (ICBO)
Frequency - Transition:	250 MHz
Power - Max:	200 mW
Mounting Type:	Surface Mount
Package / Case:	SC-89, SOT-490
Supplier Device Package:	SOT-523F

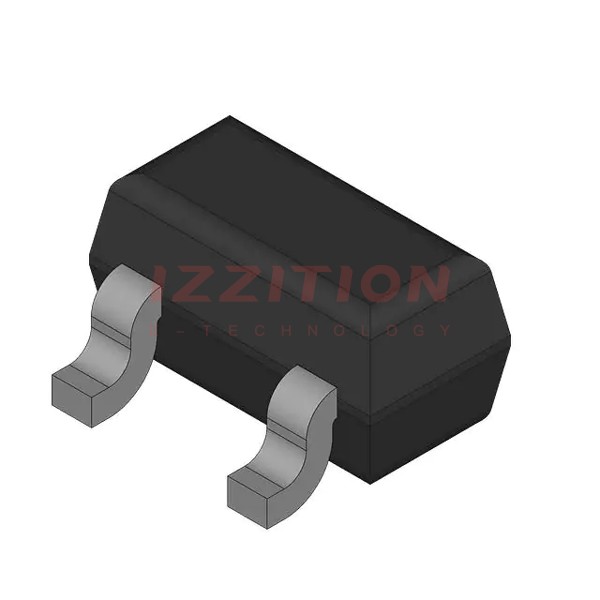

onsemi FJY3004R-ON
