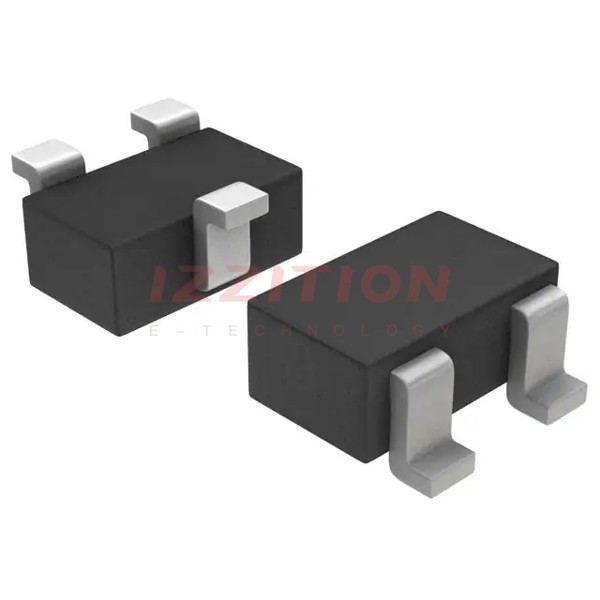

| Part Number | FJX945OTF | FJX945YTF | FJZ945OTF | FJX945GTF |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Transistor Type | NPN | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 150 mA | 150 mA | 150 mA | 150 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 10mA, 100mA | 300mV @ 10mA, 100mA | 300mV @ 10mA, 100mA | 300mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 1mA, 6V | 120 @ 1mA, 6V | 70 @ 1mA, 6V | 200 @ 1mA, 6V |
| Power - Max | 200 mW | 200 mW | 100 mW | 200 mW |
| Frequency - Transition | 300MHz | 300MHz | 300MHz | 300MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-70, SOT-323 | SC-70, SOT-323 | SOT-623F | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 | SOT-323 | SOT-623F | SOT-323 |
