| Part Number | FJX733OTF | FJX733YTF | FJX733RTF | FJX733GTF |
|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Transistor Type | PNP | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 150 mA | 150 mA | 150 mA | 150 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 10mA, 100mA | 300mV @ 10mA, 100mA | 300mV @ 10mA, 100mA | 300mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 1mA, 6V | 120 @ 1mA, 6V | 40 @ 1mA, 6V | 200 @ 1mA, 6V |
| Power - Max | 200 mW | 200 mW | 200 mW | 200 mW |
| Frequency - Transition | 180MHz | 180MHz | 180MHz | 180MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

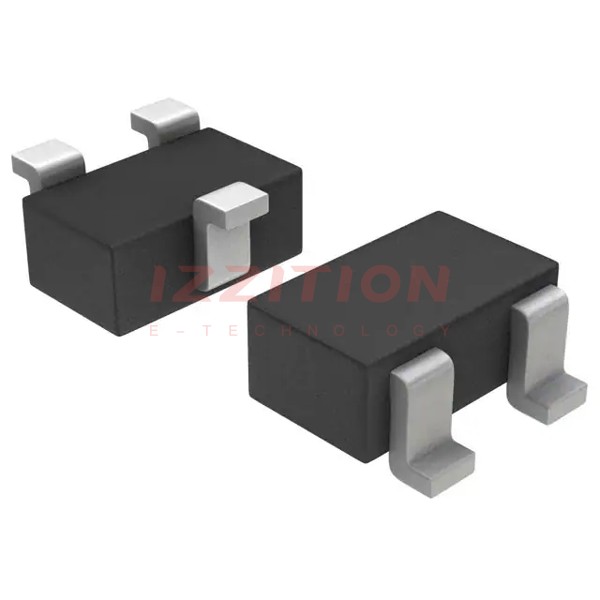

| Package / Case | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 | SC-70 (SOT323) | SOT-323 | SOT-323 |
