| Part Number | FJX4014RTF | FJX3014RTF | FJX4004RTF | FJX4010RTF | FJX4011RTF | FJX4012RTF | FJX4013RTF |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | PNP - Pre-Biased | NPN - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V | 40 V | 40 V | 40 V | 50 V |
| Resistor - Base (R1) | 4.7 kOhms | 4.7 kOhms | 47 kOhms | 10 kOhms | 22 kOhms | 47 kOhms | 2.2 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms | 47 kOhms | 47 kOhms | - | - | - | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 68 @ 5mA, 5V | 68 @ 5mA, 5V | 68 @ 5mA, 5V | 100 @ 1mA, 5V | 100 @ 1mA, 5V | 100 @ 1mA, 5V | 68 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA | 300mV @ 500µA, 10mA | 300mV @ 500µA, 10mA | 300mV @ 1mA, 10mA | 300mV @ 1mA, 10mA | 300mV @ 1mA, 10mA | 300mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| Frequency - Transition | 200 MHz | 250 MHz | 200 MHz | 200 MHz | 200 MHz | 200 MHz | 200 MHz |
| Power - Max | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

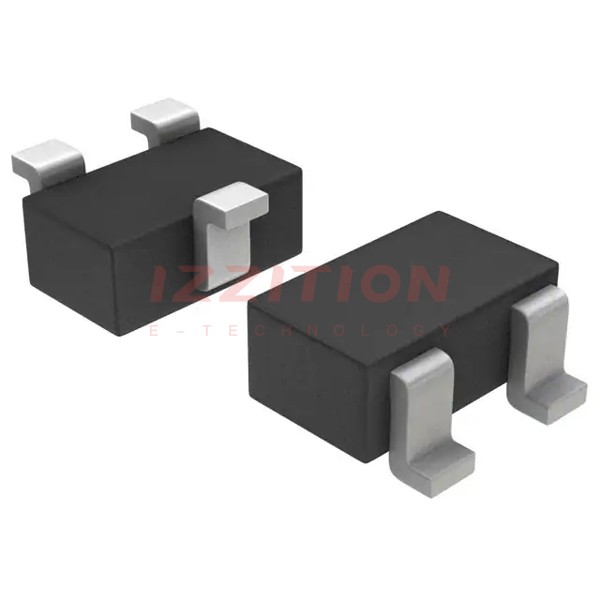

| Package / Case | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 | SC-70 (SOT323) | SC-70-3 (SOT323) | SOT-323 | SOT-323 | SOT-323 | SC-70-3 (SOT323) |
