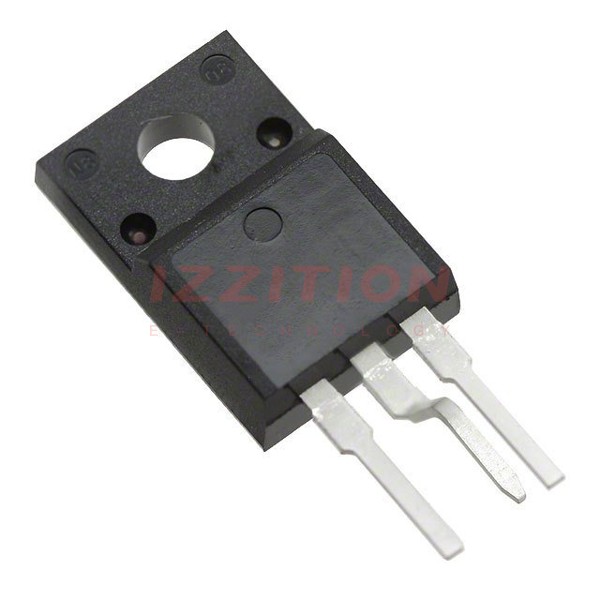

| Part Number | FJPF13009H1TU | FJPF13009H2TU | FJPF13007H1TU |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 12 A | 12 A | 8 A |
| Voltage - Collector Emitter Breakdown (Max) | 400 V | 400 V | 400 V |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 3A, 12A | 3V @ 3A, 12A | 3V @ 2A, 8A |
| Current - Collector Cutoff (Max) | - | - | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 6 @ 8A, 5V | 8 @ 5A, 5V | 15 @ 2A, 5V |
| Power - Max | 50 W | 50 W | 40 W |
| Frequency - Transition | 4MHz | 4MHz | 4MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 Full Pack, Formed Leads | TO-220-3 Full Pack | TO-220-3 Full Pack |
| Supplier Device Package | TO-220F-3 (Y-Forming) | TO-220F-3 | TO-220F-3 |
