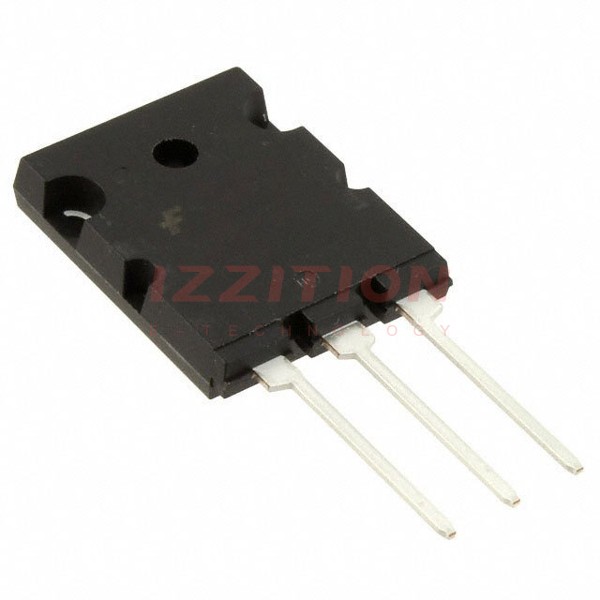

| Part Number | FJL6825TU | FJL6820TU | FJL6825ATU |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 25 A | 20 A | 25 A |
| Voltage - Collector Emitter Breakdown (Max) | 750 V | 750 V | 750 V |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 3A, 12A | 3V @ 2.75A, 11A | 3V @ 3A, 12A |
| Current - Collector Cutoff (Max) | 1mA | 1mA | 1mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 6 @ 12A, 5V | 5.5 @ 11A, 5V | 6 @ 12A, 5V |
| Power - Max | 200 W | 200 W | 200 W |
| Frequency - Transition | - | - | - |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-264-3, TO-264AA | TO-264-3, TO-264AA | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264-3 | TO-264-3 | HPM F2 |
