onsemi-FJAF4310OTU - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	FJAF4310OTU	FJAF4310YTU	FJAF4310RTU	FJA4310OTU	FJAF4210OTU
Manufacturer	onsemi	Fairchild Semiconductor	onsemi	onsemi	Fairchild Semiconductor
Product Status	Active	Active	Obsolete	Active	Active
Transistor Type	NPN	NPN	NPN	NPN	PNP
Current - Collector (Ic) (Max)	10 A	10 A	10 A	10 A	10 A
Voltage - Collector Emitter Breakdown (Max)	140 V	140 V	140 V	140 V	140 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 500mA, 5A	500mV @ 500mA, 5A	500mV @ 500mA, 5A	500mV @ 500mA, 5A	500mV @ 500mA, 5A
Current - Collector Cutoff (Max)	10µA (ICBO)	10µA (ICBO)	10µA (ICBO)	10µA (ICBO)	10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	70 @ 3A, 4V	90 @ 3A, 4V	50 @ 3A, 4V	70 @ 3A, 4V	70 @ 3A, 4V
Power - Max	80 W	80 W	80 W	100 W	80 W
Frequency - Transition	30MHz	30MHz	30MHz	30MHz	30MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-3P-3 Full Pack	TO-3PFM, SC-93-3	TO-3P-3 Full Pack	TO-3P-3, SC-65-3	TO-3P-3 Full Pack
Supplier Device Package	TO-3PF	TO-3PF-3	TO-3PF	TO-3P	TO-3PF

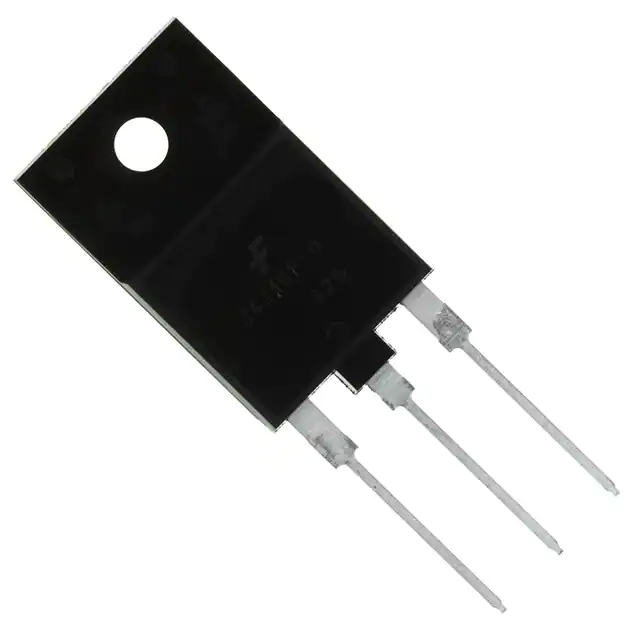

onsemi FJAF4310OTU

Transistor Type:	NPN
Current - Collector (Ic) (Max):	10 A
Voltage - Collector Emitter Breakdown (Max):	140 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 500mA, 5A
Current - Collector Cutoff (Max):	10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	70 @ 3A, 4V
Power - Max:	80 W
Frequency - Transition:	30MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-3P-3 Full Pack
Supplier Device Package:	TO-3PF
