onsemi-FGY40T120SMD - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	80 A
Current - Collector Pulsed (Icm):	160 A
Vce(on) (Max) @ Vge, Ic:	2.4V @ 15V, 40A
Power - Max:	882 W
Switching Energy:	2.7mJ (on), 1.1mJ (off)
Input Type:	Standard
Gate Charge:	370 nC
Td (on/off) @ 25°C:	40ns/475ns
Test Condition:	600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr):	65 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247

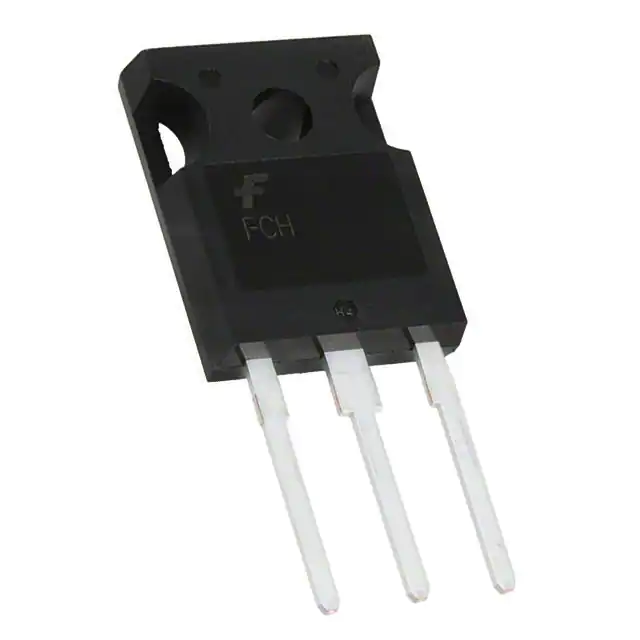

onsemi FGY40T120SMD
