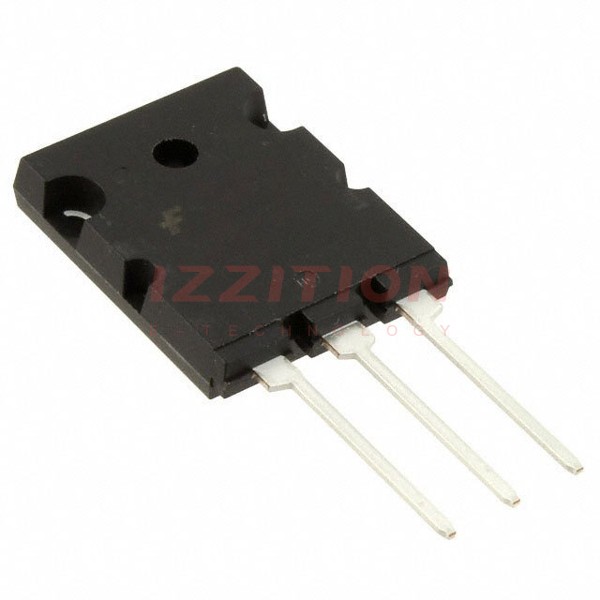

onsemi-FGL12040WD - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	80 A
Current - Collector Pulsed (Icm):	100 A
Vce(on) (Max) @ Vge, Ic:	2.9V @ 15V, 40A
Power - Max:	391 W
Switching Energy:	4.1mJ (on), 1mJ (off)
Input Type:	Standard
Gate Charge:	226 nC
Td (on/off) @ 25°C:	45ns/560ns
Test Condition:	600V, 40A, 23Ohm, 15V
Reverse Recovery Time (trr):	71 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-264-3, TO-264AA
Supplier Device Package:	TO-264-3

onsemi FGL12040WD
