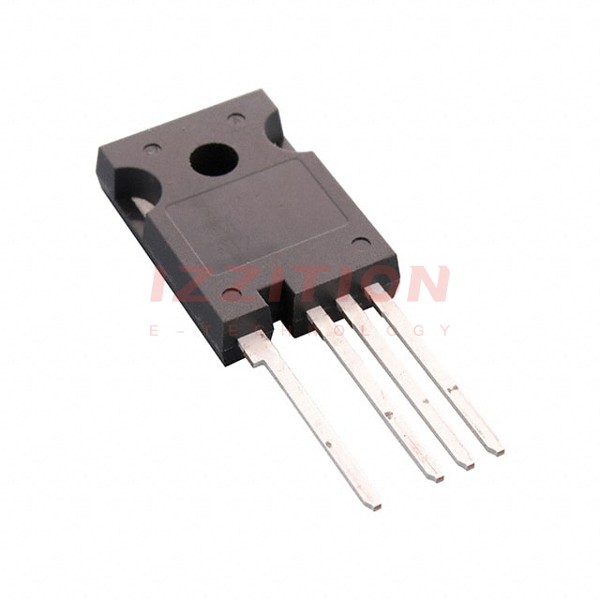

| Part Number | FGH75T65SQDNL4 | FGH75T65SQDTL4 |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | - |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | - |
| Current - Collector (Ic) (Max) | 200 A | - |
| Current - Collector Pulsed (Icm) | 200 A | - |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A | - |
| Power - Max | 375 W | - |
| Switching Energy | 1.25mJ (on), 1.26mJ (off) | - |
| Input Type | Standard | - |
| Gate Charge | 152 nC | - |
| Td (on/off) @ 25°C | 44ns/208ns | - |
| Test Condition | 400V, 75A, 10Ohm, 15V | - |
| Reverse Recovery Time (trr) | 134 ns | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | - |
| Mounting Type | Through Hole | - |
| Package / Case | TO-247-4 | - |
| Supplier Device Package | TO-247-4L | - |
