Please send RFQ , we will respond immediately.

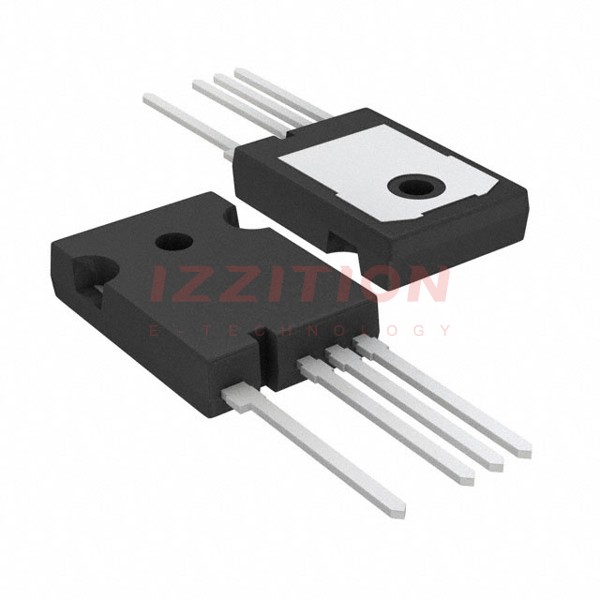

| Part Number | FGH75T65SHDTL4 | FGH75T65SQDTL4 | FGH75T65SHDTLN4 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete |
| IGBT Type | Field Stop | - | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | - | 650 V |
| Current - Collector (Ic) (Max) | 150 A | - | 150 A |
| Current - Collector Pulsed (Icm) | 300 A | - | 300 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A | - | 2.1V @ 15V, 75A |
| Power - Max | 455 W | - | 455 W |
| Switching Energy | 1.06mJ (on), 1.56mJ (off) | - | 1.06mJ (on), 1.56mJ (off) |
| Input Type | Standard | - | Standard |
| Gate Charge | 126 nC | - | 126 nC |
| Td (on/off) @ 25°C | 55ns/189ns | - | 55ns/189ns |
| Test Condition | 400V, 75A, 15Ohm, 15V | - | 400V, 75A, 15Ohm, 15V |
| Reverse Recovery Time (trr) | 76 ns | - | 36 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | - | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | - | Through Hole |
| Package / Case | TO-247-4 | - | TO-247-4 |
| Supplier Device Package | TO-247 | - | TO-247-4 |
