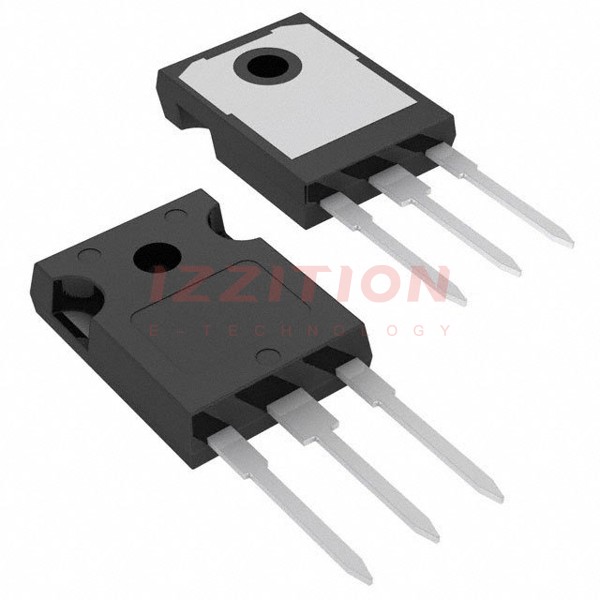

| Part Number | FGH40T120SMD-F155 | FGH40T100SMD-F155 |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1000 V |
| Current - Collector (Ic) (Max) | 80 A | 80 A |
| Current - Collector Pulsed (Icm) | 160 A | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 40A | 2.3V @ 15V, 40A |
| Power - Max | 555 W | 333 W |
| Switching Energy | 2.7mJ (on), 1.1mJ (off) | 2.35mJ (on), 1.15mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 370 nC | 398 nC |
| Td (on/off) @ 25°C | 40ns/475ns | 29ns/285ns |
| Test Condition | 600V, 40A, 10Ohm, 15V | 600V, 40A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 65 ns | 78 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247-3 | TO-247-3 |
