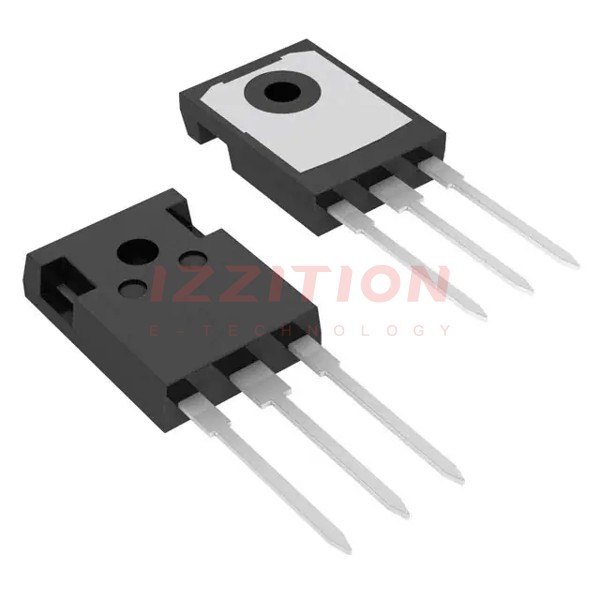

| Part Number | FGH30S130P | FGH30S150P |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | - |
| Voltage - Collector Emitter Breakdown (Max) | 1300 V | - |
| Current - Collector (Ic) (Max) | 60 A | - |
| Current - Collector Pulsed (Icm) | 90 A | - |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 30A | - |
| Power - Max | 500 W | - |
| Switching Energy | - | - |
| Input Type | Standard | - |
| Gate Charge | 78 nC | - |
| Td (on/off) @ 25°C | - | - |
| Test Condition | - | - |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | - |
| Mounting Type | Through Hole | - |
| Package / Case | TO-247-3 | - |
| Supplier Device Package | TO-247-3 | - |
