onsemi-FGAF40S65AQ - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	650 V
Current - Collector (Ic) (Max):	80 A
Current - Collector Pulsed (Icm):	160 A
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 40A
Power - Max:	94 W
Switching Energy:	132µJ (on), 62µJ (off)
Input Type:	Standard
Gate Charge:	75 nC
Td (on/off) @ 25°C:	17.8ns/81.6ns
Test Condition:	400V, 10A, 6Ohm, 15V
Reverse Recovery Time (trr):	274 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-3P-3 Full Pack
Supplier Device Package:	TO-3PF-3

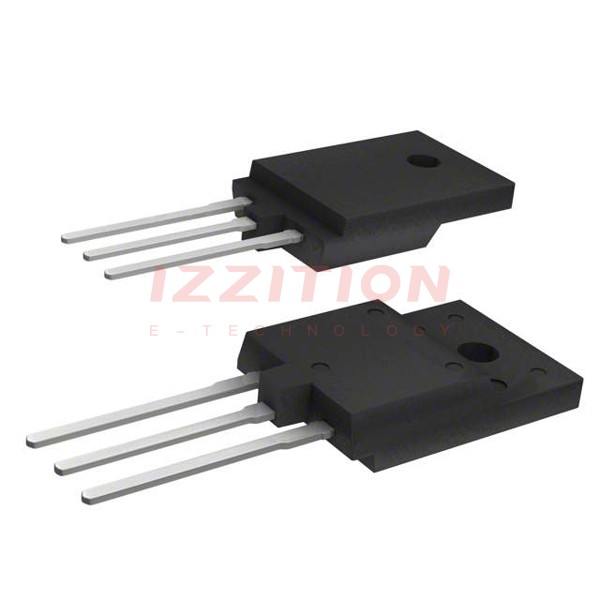

onsemi FGAF40S65AQ
