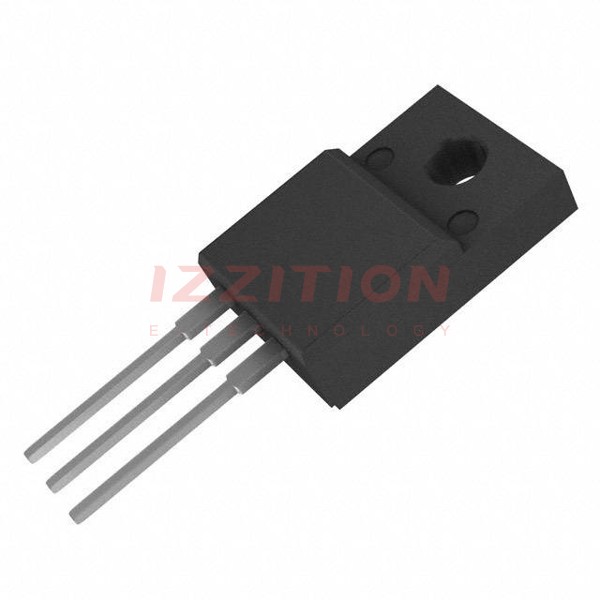

| Part Number | FGAF40N60SMD | FGAF20N60SMD |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Obsolete |
| IGBT Type | Field Stop | Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 80 A | 40 A |
| Current - Collector Pulsed (Icm) | 120 A | 60 A |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 40A | 1.7V @ 15V, 20A |
| Power - Max | 115 W | 75 W |
| Switching Energy | 870µJ (on), 260µJ (off) | 452µJ (on), 141µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 119 nC | 64 nC |
| Td (on/off) @ 25°C | 12ns/92ns | 12ns/91ns |
| Test Condition | 400V, 40A, 6Ohm, 15V | 400V, 20A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 36 ns | 26.7 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-3P-3 Full Pack | TO-3P-3 Full Pack |
| Supplier Device Package | TO-3PF | TO-3PF |
