| Part Number | FGA15N120ANDTU | FGA15N120ANTDTU | FGA25N120ANDTU |
|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| IGBT Type | NPT | NPT and Trench | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 24 A | 30 A | 40 A |
| Current - Collector Pulsed (Icm) | 45 A | 45 A | 75 A |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 15A | 2.4V @ 15V, 15A | 3.2V @ 15V, 25A |
| Power - Max | 200 W | 186 W | 310 W |
| Switching Energy | 3.27mJ (on), 600µJ (off) | 3mJ (on), 600µJ (off) | 4.8mJ (on), 1mJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 120 nC | 120 nC | 200 nC |
| Td (on/off) @ 25°C | 90ns/310ns | 15ns/160ns | 60ns/170ns |
| Test Condition | 600V, 15A, 20Ohm, 15V | 600V, 15A, 10Ohm, 15V | 600V, 25A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 330 ns | 330 ns | 350 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

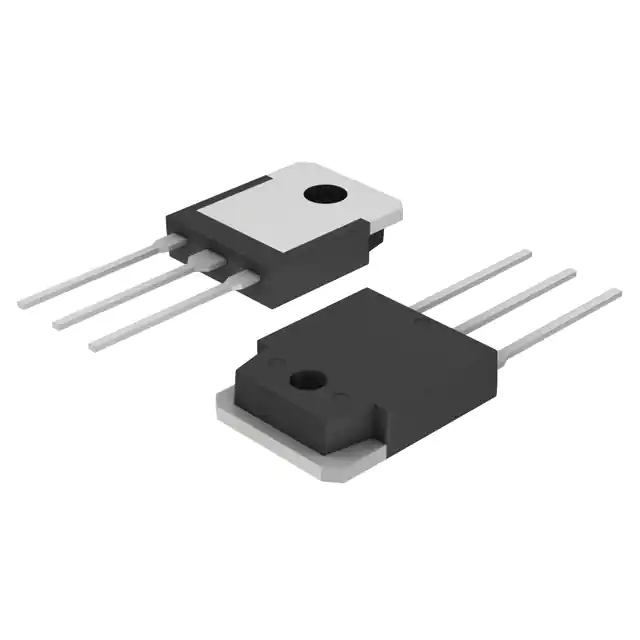

| Package / Case | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3PN | TO-3P | TO-3P |
