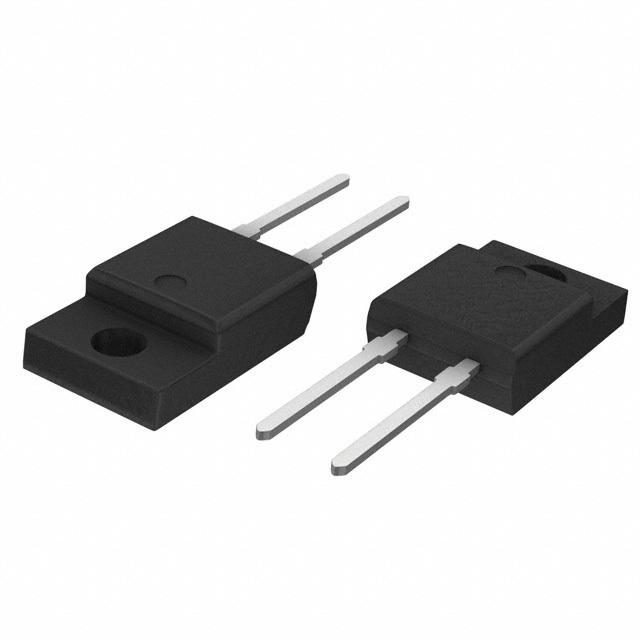

| Part Number | FFSPF0865A | FFSP0865A | FFSPF0665A |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V | 650 V | 650 V |
| Current - Average Rectified (Io) | 8A (DC) | 13A (DC) | 6A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.75 V @ 8 A | 1.75 V @ 8 A | 1.75 V @ 6 A |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns | 0 ns |
| Current - Reverse Leakage @ Vr | 200 µA @ 650 V | 200 µA @ 650 V | 200 µA @ 650 V |
| Capacitance @ Vr, F | 463pF @ 1V, 100kHz | 463pF @ 1V, 100kHz | 361pF @ 1V, 100kHz |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-2 Full Pack | TO-220-2 | TO-220-2 Full Pack |
| Supplier Device Package | TO-220F-2FS | TO-220-2 | TO-220F-2FS |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
