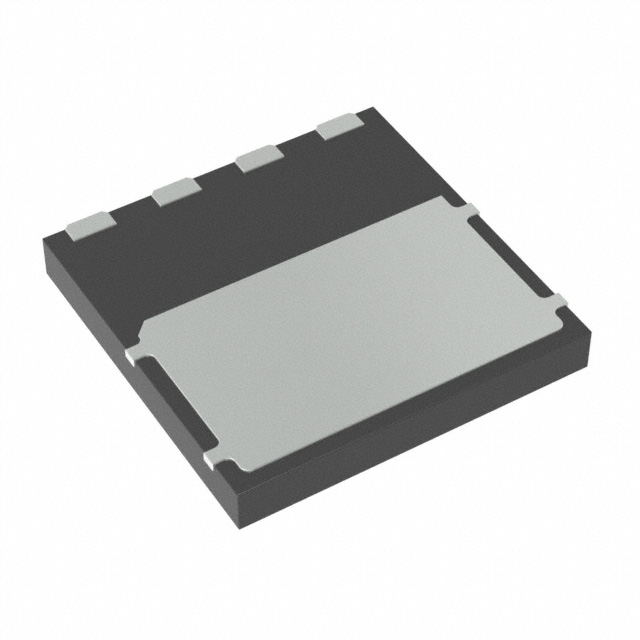

| Part Number | FFSM1065A | FFSM1065B | FFSP1065A | FFSM1265A | FFSB1065A | FFSD1065A |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V | 650 V | 650 V | 650 V | 650 V | 650 V |
| Current - Average Rectified (Io) | 11A (DC) | 13.5A (DC) | 15A (DC) | 12.5A (DC) | 14A (DC) | 18A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.75 V @ 10 A | 1.7 V @ 10 A | 1.75 V @ 10 A | 1.75 V @ 12 A | 1.75 V @ 10 A | 1.75 V @ 10 A |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns | 0 ns | 0 ns | - | 0 ns |
| Current - Reverse Leakage @ Vr | 200 µA @ 650 V | 40 µA @ 650 V | 200 µA @ 650 V | 200 µA @ 650 V | 200 µA @ 650 V | 200 µA @ 650 V |
| Capacitance @ Vr, F | 575pF @ 1V, 100kHz | 424pF @ 1V, 100kHz | 575pF @ 1V, 100kHz | 665pF @ 1V, 100kHz | 575pF @ 1V, 100kHz | 575pF @ 1V, 100kHz |
| Mounting Type | Surface Mount | Surface Mount | Through Hole | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-PowerTSFN | 4-PowerTSFN | TO-220-2 | 4-PowerTSFN | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | 4-PQFN (8x8) | 4-PQFN (8x8) | TO-220-2L | 4-PQFN (8x8) | D²PAK-3 (TO-263-3) | D-PAK (TO-252) |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
