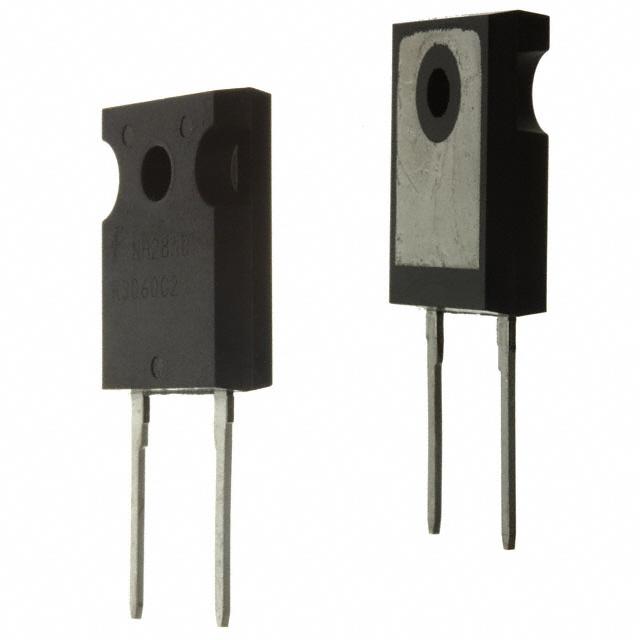

| Part Number | FFSH5065B-F085 | FFSH1065B-F085 | FFSH2065B-F085 | FFSH3065B-F085 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V | 650 V | 650 V | 650 V |
| Current - Average Rectified (Io) | 50A (DC) | 11.5A (DC) | 20A | 37A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 50 A | - | 1.7 V @ 20 A | 1.7 V @ 30 A |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns | 0 ns | 0 ns |
| Current - Reverse Leakage @ Vr | 40 µA @ 650 V | 40 µA @ 650 V | 40 µA @ 650 V | 40 µA @ 650 V |
| Capacitance @ Vr, F | 2030pF @ 1V, 100kHz | 421pF @ 1V, 100kHz | 866pF @ 1V, 100kHz | 1260pF @ 1V, 100kHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-2 | TO-247-2 | TO-247-2 | TO-247-2 |
| Supplier Device Package | TO-247-2 | TO-247-2 | TO-247-2 | TO-247-2 |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
